Installation instructions Frame socket

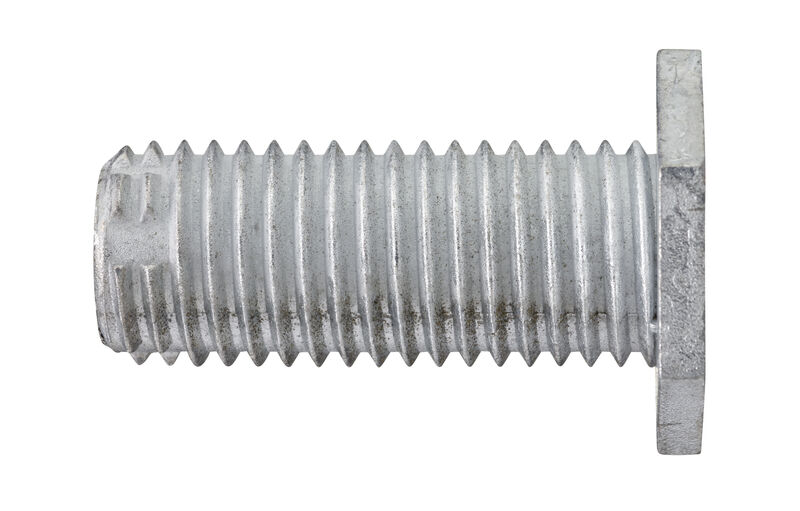

Frame socket

  • Function: Frame socket approved to Swedish standard SS 817332 for wood frame bracket. Can also be used for attaching frames to concrete, light concrete, hollow block or beam max 6 mm. The socket is screwed into a pre-drilled hole in the frame. The frame can be adjusted by turning the socket with the adjuster key. The socket is locked in place using a custom screw designed to suit the surface.
  • Material: Zinc.
  • Installation instruction: The socket is screwed into a 14 mm pre-drilled hole from the outside/wall side of the frame. Frame alignment is set both vertically and horizontally Now unscrew the socket to the base and adjust the frame using the adjusting key. Lock the socket in place using a screw designed for the surface from our range. Cover the holes with frame anchor covers.
Unit Guide
D Diameter
D1 Outer diameter
G Thread length
H Head diameter
L Length
M Thickness
MB Mother box
Drill cap. mm Drill capacity mm
Max comp. thick. app. mm Max component thickness application mm
Min. drill depth mm Minimum drill depth mm
Screw dim. mm Screw dimension mm
Surface treat. Surface treatment
D L Art.no Quantity Pack. MB
16 28 B44228 1000 Bulk pack
16 28 442289 60 Packaging 8
16 28 44328 25 Packaging 12
16 40 B44240 900 Bulk pack
16 40 442409 40 Packaging 8
16 40 44340 25 Packaging 12
16 60 B44260 600 Bulk pack
16 60 44360 16 Packaging 12
16 28 SB44228 6 Pack 10
16 40 SB44240 6 Pack 10
16 60 SB44260 6 Pack 10
Consult the product data sheet for technical specifications. NOTE: Packs are only sold in multiples of ten.
