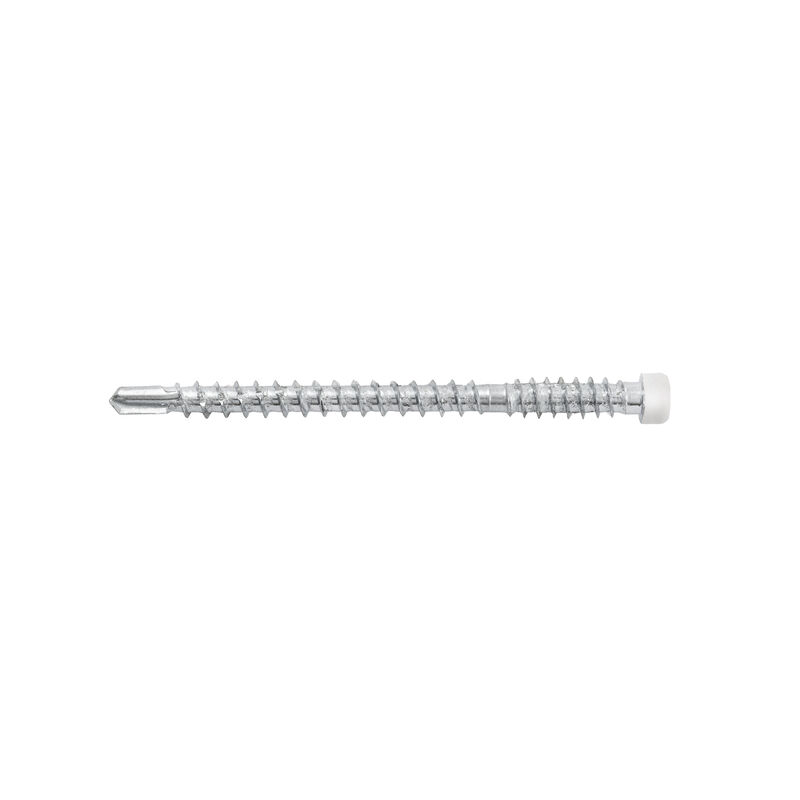

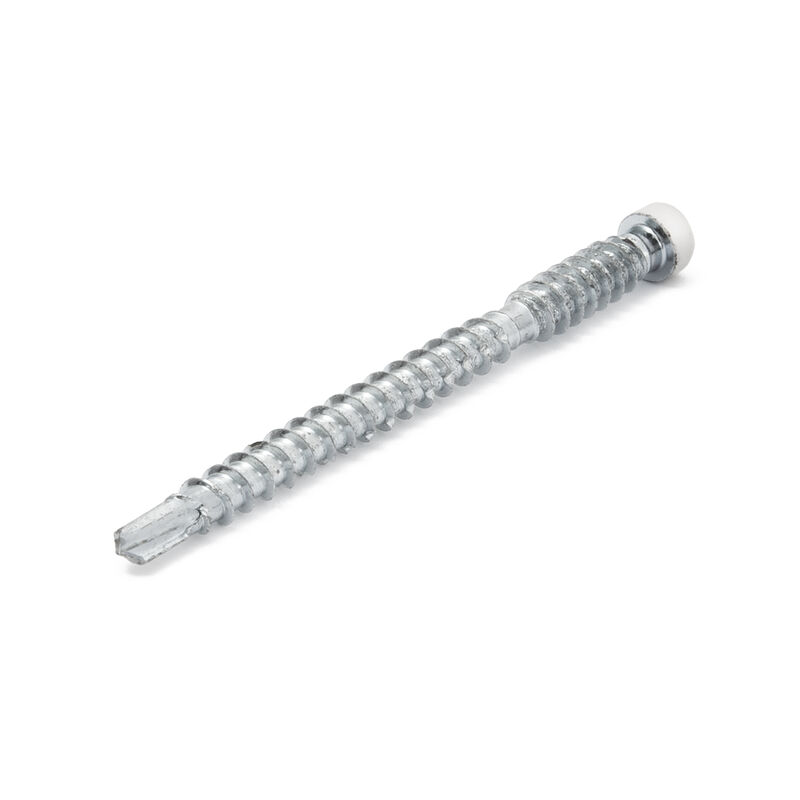

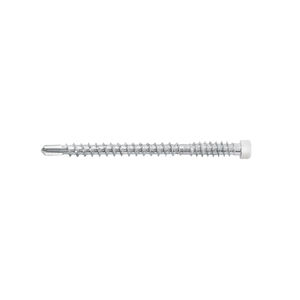

Skirting and panel screw Extreme white for wood and steel studs max 1 mm
- Function: Patented design with a reduced drill tip for anchoring in wood and steel studs up to 1 mm. The drill tip pre-drills and the threads under the head secure the wooden component while the cylindrical head is countersunk into the material. Suitable for installing moldings, paneling, wooden parts, etc.
- Material: Case hardened steel
- Coating: White lacquered RAL 9010, for indoor use

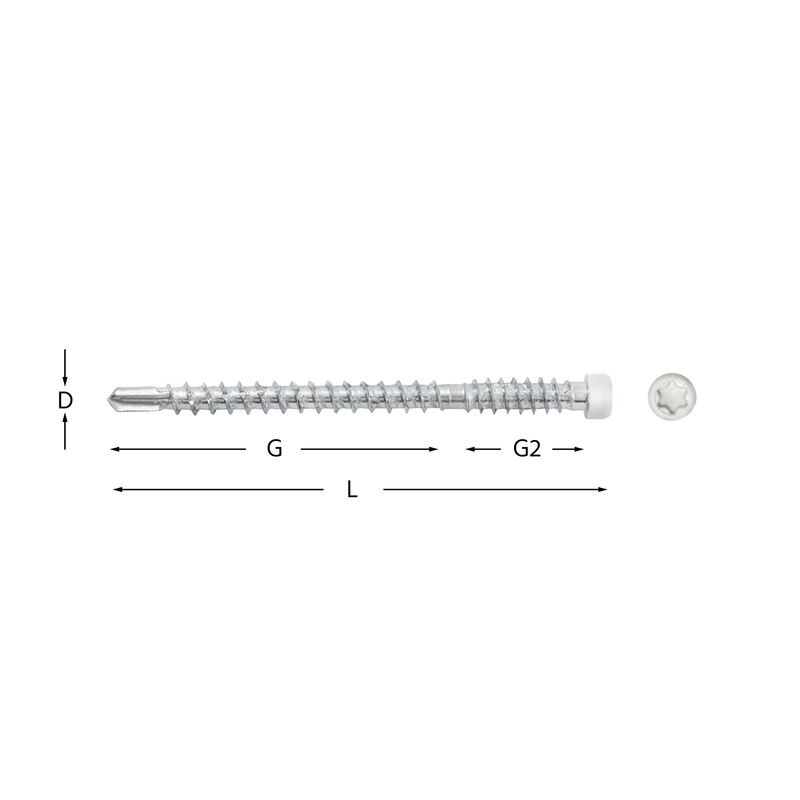

| D | Diameter |
| D1 | Outer diameter |
| G | Thread length |
| H | Head diameter |
| L | Length |
| M | Thickness |
| MB | Mother box |
| Drill cap. mm | Drill capacity mm |
| Max comp. thick. app. mm | Max component thickness application mm |
| Min. drill depth mm | Minimum drill depth mm |
| Screw dim. mm | Screw dimension mm |
| Surface treat. | Surface treatment |
| D | L | G | G2 | Art.no | Quantity | Pack. | MB |
|---|---|---|---|---|---|---|---|
| 4.2 | 48 | 31 | 12 | V9048 | 3500 | Bulk pack | |
| 4.2 | 48 | 31 | 12 | V9148 | 500 | Packaging | 8 |
| 4.2 | 48 | 31 | 12 | V9948 | 200 | Packaging | 16 |
| 4.2 | 62 | 41 | 15 | V9062 | 3000 | Bulk pack | |
| 4.2 | 62 | 41 | 15 | V9162 | 300 | Packaging | 8 |
| 4.2 | 62 | 41 | 15 | V9962 | 150 | Packaging | 16 |
