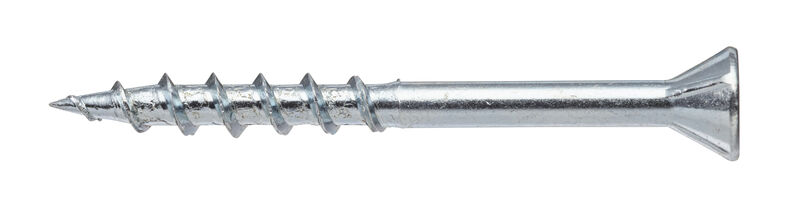

Chipboard screw for wood stud

Function: Sharp tip and threads adapted for anchoring in wood. The threads immediately grip and tighten the screw to the chipboard, while the grooves underneath the head sink the screw.
Track type bit: Philips 2.
Material: Case hardened steel.
Coating: Zinc-plated 5 my, for indoor use.
Installation instructions: A power screwdriver with depth stop, speed of 2,000-3,000 rpm is recommended.
Sizing: About 20 pcs/m², screw spacing 20 cm.

Unit Guide

D	Diameter
D1	Outer diameter
G	Thread length
H	Head diameter
L	Length
M	Thickness
MB	Mother box
Drill cap. mm	Drill capacity mm
Max comp. thick. app. mm	Max component thickness application mm
Min. drill depth mm	Minimum drill depth mm
Screw dim. mm	Screw dimension mm
Surface treat.	Surface treatment

	D	L	G	Art.no	Quantity	Pack.	MB
*	3.9	25	15	8025	10000	Bulk pack
*	3.9	25	15	8125	1000	Packaging	8
*	3.9	25	15	8925	250	Packaging	16
	3.9	30	19	8030	8000	Bulk pack
	3.9	30	19	8130	1000	Packaging	8
	3.9	30	19	8930	250	Packaging	16
	3.9	30	19	SB8130	30	Pack	10
	3.9	41	21	8041	5000	Bulk pack
	3.9	41	21	814199	600	Packaging	8
	3.9	41	21	8941	200	Packaging	16
	3.9	41	21	SB8141	25	Pack	10
	4.2	51	29	8051	3500	Bulk pack
	4.2	51	29	8151	500	Packaging	8
	4.2	51	29	8951	200	Packaging	12
	4.2	57	35	8057	3500	Bulk pack
	4.2	57	35	8157	500	Packaging	8
	4.2	57	35	8957	150	Packaging	16
	4.2	57	35	SB8157	20	Pack	10
	4.2	75	45	8075	2000	Bulk pack
	4.2	75	45	8175	250	Packaging	8
	4.2	75	45	8975	100	Packaging	16

*CE 14592 does not apply to this dimension. NOTE: Packs are only sold in multiples of ten.
