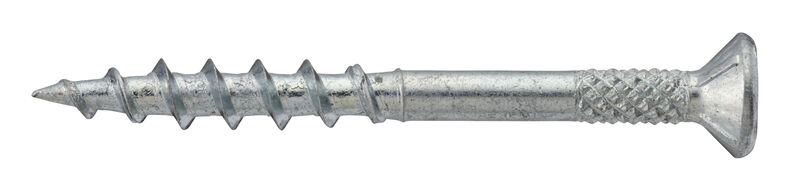

Collated chipboard screw for wood stud

  • Function: Sharp tip and threads adapted for anchoring in wood. The threads grip immediately and tighten the screw to the chipboard, while the grooves underneath the head sink the screw. Suitable for assembly of chipboard, OSB, Plywood and other wood-based boards.
  • Track type bit: Philips 2.
  • Material: Case hardened steel.
  • Coating: Zinc-plated 5 my, for indoor use.
  • Installation instructions: A power screwdriver with a speed of 2,000-3,000 rpm is recommended.
  • Sizing: About 20 pcs/m², screw spacing 20 cm.
Unit Guide
D Diameter
D1 Outer diameter
G Thread length
H Head diameter
L Length
M Thickness
MB Mother box
Drill cap. mm Drill capacity mm
Max comp. thick. app. mm Max component thickness application mm
Min. drill depth mm Minimum drill depth mm
Screw dim. mm Screw dimension mm
Surface treat. Surface treatment
D L G Art.no E-number Quantity Pack. MB
4.2 30 21 RB8030 1000 Packaging 10
4.2 41 21 RB8041 1000 Packaging 6
4.2 51 29 RB8051 1000 Packaging 8
4.2 55 33 RB8055 1000 Packaging 8
