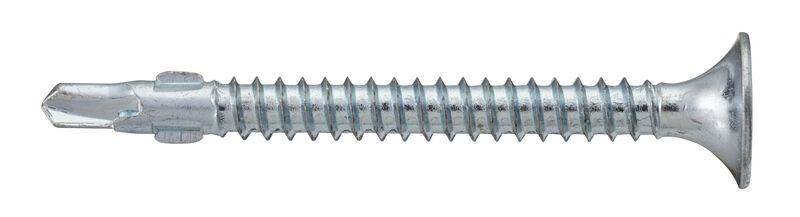

Collated drywall screw special for steel plate max 2 mm

  • Function: Drill tip and threads adapted for anchoring to steel up to 2 mm. The wings mill out the hole in the chipboard. When the drill tip passes through the steel, the wings break off and the head sinks into the drywall board without damaging the cardboard layer. Suitable for installation assembly where the innermost panel is made of chipboard or plywood.
  • Track type bit: Philips 2.
  • Material: Case hardened steel.
  • Coating: Zinc-plated 5 my, for indoor use.
  • Installation instructions: A power screwdriver with a speed of 2,000-3,000 rpm is recommended.
  • Sizing: Around 15 pcs/m², screw spacing 20 cm on the edge of the plate and 30 cm on the inner section.
Unit Guide
D Diameter
D1 Outer diameter
G Thread length
H Head diameter
L Length
M Thickness
MB Mother box
Drill cap. mm Drill capacity mm
Max comp. thick. app. mm Max component thickness application mm
Min. drill depth mm Minimum drill depth mm
Screw dim. mm Screw dimension mm
Surface treat. Surface treatment
D L G Art.no E-number Quantity Pack. MB
3.9 42 36 RBW5042 1000 Packaging 10
