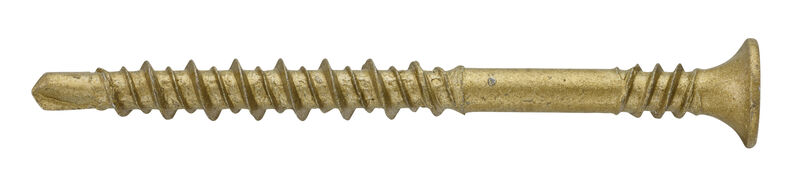

Collated universal screw (TOPGRIP) (external) for wood stud

  • Function: Reduced drill tip and threads adapted for anchoring in wood. Suitable for external installation of chipboard, panels, plywood etc.
  • Drive type: Philips 2.
  • Material: Case hardened steel.
  • Surface treatment: Zincotech Au, corrosivity class C4, for outdoor use.
  • Installation instruction: A power screwdriver with a speed of 2,000-3,000 rpm is recommended.
Unit Guide
D Diameter
D1 Outer diameter
G Thread length
H Head diameter
L Length
M Thickness
MB Mother box
Drill cap. mm Drill capacity mm
Max comp. thick. app. mm Max component thickness application mm
Min. drill depth mm Minimum drill depth mm
Screw dim. mm Screw dimension mm
Surface treat. Surface treatment
D L G Art.no Quantity Pack. MB
4.5 32 23 RB3332 1000 Packaging 10
4.5 51 30 RB3351 1000 Packaging 8
