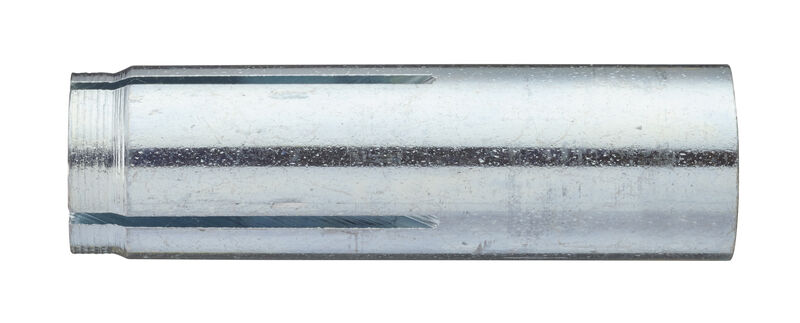

Drop in anchor
- Function: European technically approved drop in anchor (ETA-02/0020, ETA-05/0116) with metric internal thread for installing in concrete.
- Material: Steel.
- Coating: Zinc-plated 5 my, for indoor use.
- Installation instructions: Drill a hole adapted to suit the size of the drop in anchor as shown in the table below. Push the anchor into the hole. Expand the drop in anchor with a custom made punch.
| D | Diameter |
| D1 | Outer diameter |
| G | Thread length |
| H | Head diameter |
| L | Length |
| M | Thickness |
| MB | Mother box |
| Drill cap. mm | Drill capacity mm |
| Max comp. thick. app. mm | Max component thickness application mm |
| Min. drill depth mm | Minimum drill depth mm |
| Screw dim. mm | Screw dimension mm |
| Surface treat. | Surface treatment |
| D | L | Min. drill depth mm | Drill mm | Art.no | Quantity | Pack. | MB | |
|---|---|---|---|---|---|---|---|---|
| 6 | 30 | 30 | 8 | 84601 | 100 | Packaging | 12 | |
| 8 | 30 | 30 | 10 | 84602 | 100 | Packaging | 12 | |
| 10 | 40 | 40 | 12 | 84603 | 50 | Packaging | 12 | |
| 12 | 50 | 50 | 15 | 84604 | 50 | Packaging | 8 | |
| 16 | 65 | 65 | 20 | 84605 | 25 | Packaging | 8 | |
| 20 | 80 | 80 | 25 | 84606 | 25 | Packaging | 6 |
