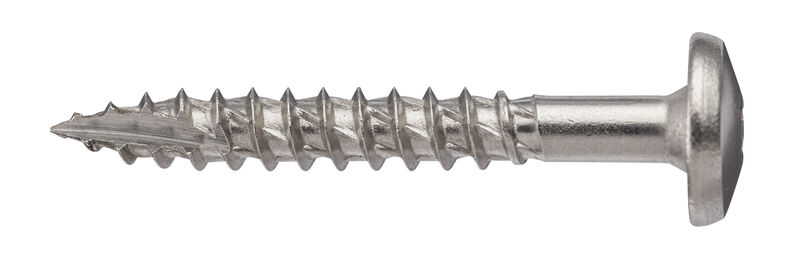

Façade screw (A2 stainless steel) for wood stud

  • Function: Sharp tip and threads adapted for anchoring in wood. The head’s low-profile pan design fits superbly to most external façade panels as well as other external attachments. The unique tightening features of the screw have been achieved by providing the screw with a cutting drill tip, as well as with oblique and longitudinal flanks between the threads. This provides the following benefits:
    • Less risk of cracks in wood.
    • Lower torque when tightening.
    • Less screwing time.
  • Track type bit: TX 20.
  • Material: Stainless steel (A2).
  • Installation instructions: A power screwdriver with a speed of 1,500-2,500 rpm is recommended. The façade panels must be pre-drilled in cases the panel manufacturer recommends this.
Unit Guide
D Diameter
D1 Outer diameter
G Thread length
H Head diameter
L Length
M Thickness
MB Mother box
Drill cap. mm Drill capacity mm
Max comp. thick. app. mm Max component thickness application mm
Min. drill depth mm Minimum drill depth mm
Screw dim. mm Screw dimension mm
Surface treat. Surface treatment
D L G Art.no E-number Quantity Pack. MB
4.8 38 30 B6838 5000 Bulk pack
4.8 38 30 683800 200 Packaging 12
4.8 38 30 P683800 150 Plastic box 12
