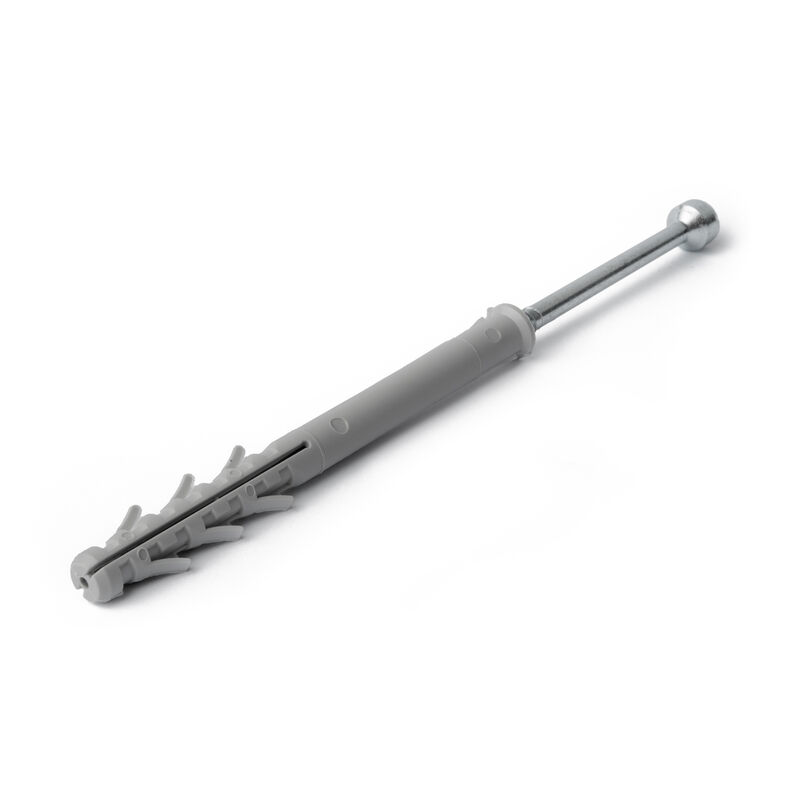

Frame socket screw with plug

• Function: The screw together with the plug is meant to be used to fix frame sockets when installing into aerated concrete, lightweight clinker, hollow stone, and concrete.
• Track type bit: TX 40.
• Material: Plug made of nylon and screw made of steel.
• Coating: Electro-galvanized 5 my, for indoor use.

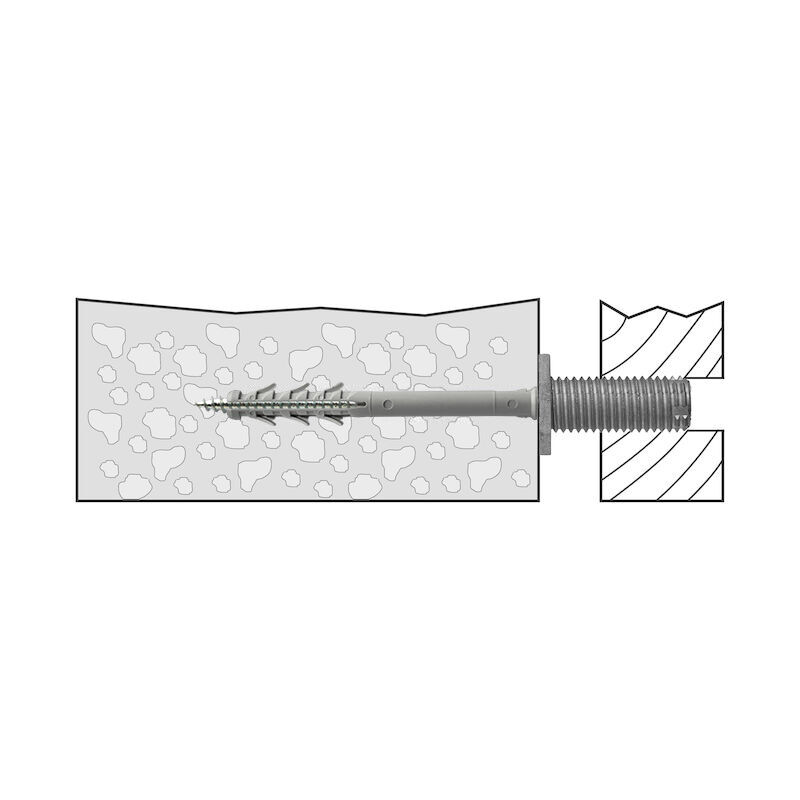

• Installation instructions: After the frame socket is installed and the frame is adjusted to the correct position, fix the frame socket with the frame socket screw together with the plug. Drill a hole in the surface through the frame socket when the window/door is in place. Attach the screw to the plug, then tap the plug through the frame socket until the collar reaches the bottom of the frame socket. Then screw in the screw into the plug.

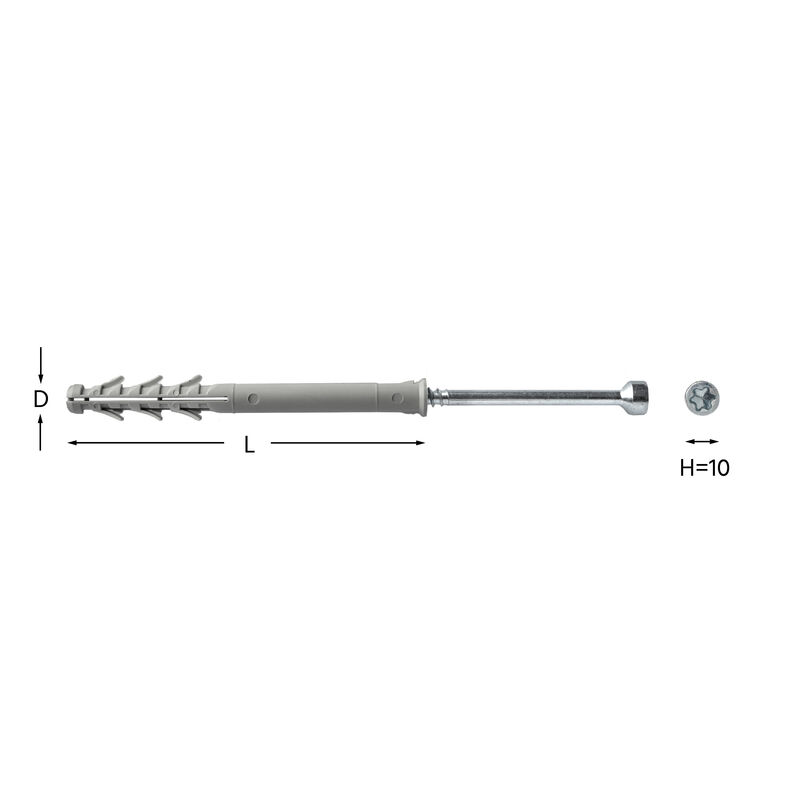

D	Diameter
D1	Outer diameter
G	Thread length
H	Head diameter
L	Length
M	Thickness
MB	Mother box
Drill cap. mm	Drill capacity mm
Max comp. thick. app. mm	Max component thickness application mm
Min. drill depth mm	Minimum drill depth mm
Screw dim. mm	Screw dimension mm
Surface treat.	Surface treatment
