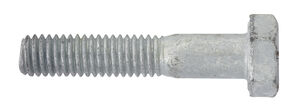

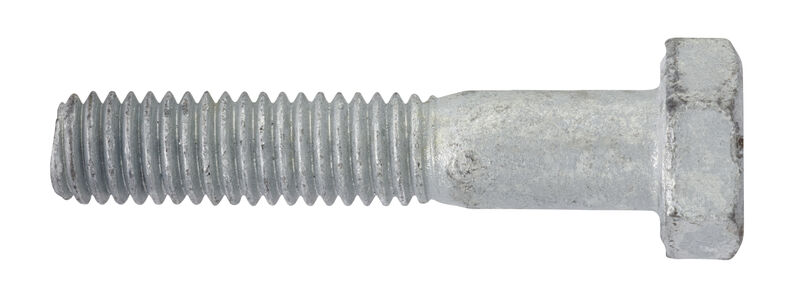

M6S (external)

  • Function: Bolt (hex bolt) 8.8, with hexagon head, according to ISO 4014/4017 (M8) and DIN 931/933 (M10, M12).
  • Drive type: Sleeves 13, 17 and 19 mm.
  • Material: Steel 8.8.
  • Surface treatment: Hot-dip galvanised, for outdoor use.
Unit Guide
D Diameter
D1 Outer diameter
G Thread length
H Head diameter
L Length
M Thickness
MB Mother box
Drill cap. mm Drill capacity mm
Max comp. thick. app. mm Max component thickness application mm
Min. drill depth mm Minimum drill depth mm
Screw dim. mm Screw dimension mm
Surface treat. Surface treatment
D L Bits/Socket Art.no Quantity Pack. MB
8 20 13 88820 100 Packaging 12
8 30 13 88830 100 Packaging 12
8 40 13 88840 100 Packaging 8
8 50 13 88850 100 Packaging 8
8 60 13 88860 100 Packaging 6
8 70 13 88870 50 Packaging 8
8 80 13 88880 50 Packaging 8
8 100 13 888100 50 Packaging 8
10 30 17 881030 50 Packaging 12
10 40 17 881040 50 Packaging 12
10 50 17 881050 50 Packaging 8
10 60 17 881060 50 Packaging 8
10 70 17 881070 50 Packaging 6
10 80 17 881080 50 Packaging 6
10 100 17 8810100 25 Packaging 8
10 120 17 8810120 25 Packaging 8
10 140 17 8810140 25 Packaging 8
10 160 17 8810160 25 Packaging 6
12 40 19 881240 25 Packaging 12
12 50 19 881250 25 Packaging 12
12 60 19 881260 25 Packaging 12
12 70 19 881270 25 Packaging 12
12 80 19 881280 25 Packaging 8
12 100 19 8812100 25 Packaging 8
12 120 19 8812120 25 Packaging 8
12 140 19 8812140 25 Packaging 6
12 160 19 8812160 20 Packaging 6
Consult the product data sheet for technical specifications.
