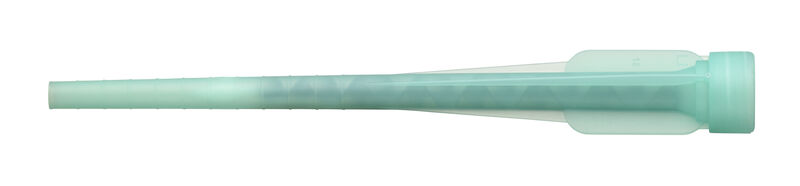

Mixing tube for chemical anchor

  • Function: The mixing tube is fitted to the chemical anchor cartridge and is tasked with mixing the chemical anchor when installing.
  • Installation instructions: Open the chemical anchor cartridge by unscrewing the lid, then screw on the mixing tube.
Unit Guide
D Diameter
D1 Outer diameter
G Thread length
H Head diameter
L Length
M Thickness
MB Mother box
Drill cap. mm Drill capacity mm
Max comp. thick. app. mm Max component thickness application mm
Min. drill depth mm Minimum drill depth mm
Screw dim. mm Screw dimension mm
Surface treat. Surface treatment
Name Art.no Quantity Pack. MB
Mixing tube 150/280 ml 84713 1 Packaging 20
