Plastic frame anchor covers

Function: The frame anchor covers are designed to cover the holes in the frame resulting from frame screws and frame sockets. Place the frame anchor cover on the hole and press. If you experience any friction, then knock in gently with a hammer.
Material: Plastic.

Unit Guide

D	Diameter
D1	Outer diameter
G	Thread length
H	Head diameter
L	Length
M	Thickness
MB	Mother box
Drill cap. mm	Drill capacity mm
Max comp. thick. app. mm	Max component thickness application mm
Min. drill depth mm	Minimum drill depth mm
Screw dim. mm	Screw dimension mm
Surface treat.	Surface treatment

D	D1	Colour	Art.no	Quantity	Pack.	MB

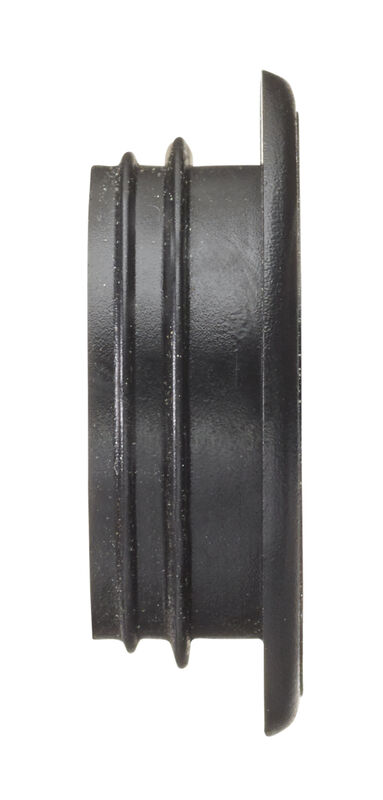

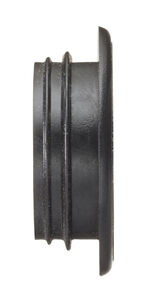

14	19	Black 9000	44005	200	Packaging	12
14	19	Black 9000	SB44005	10	Pack	10

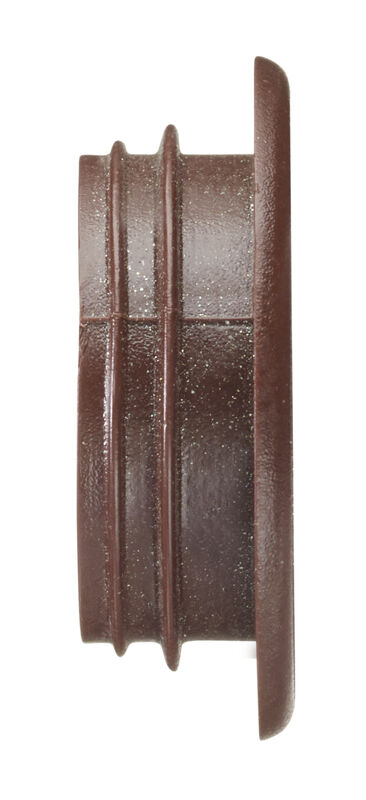

14	19	Dark brown 8010-Y70R	44003	200	Packaging	12
14	19	Dark brown 8010-Y70R	SB44003	10	Pack	10

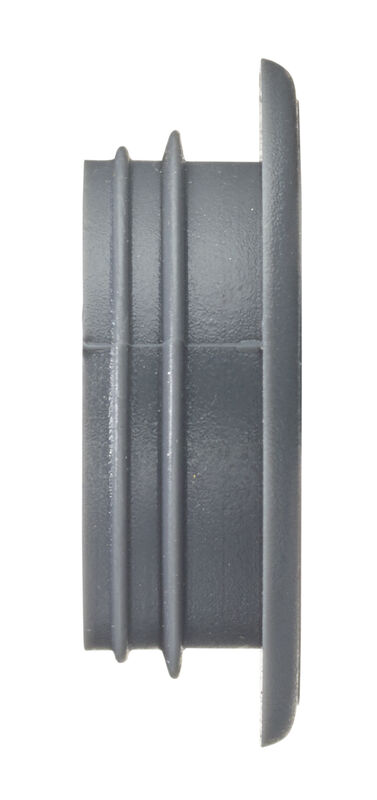

14	19	Dark grey 6502-B	44023	200	Packaging	12
14	19	Dark grey 6502-B	SB44023	10	Pack	10

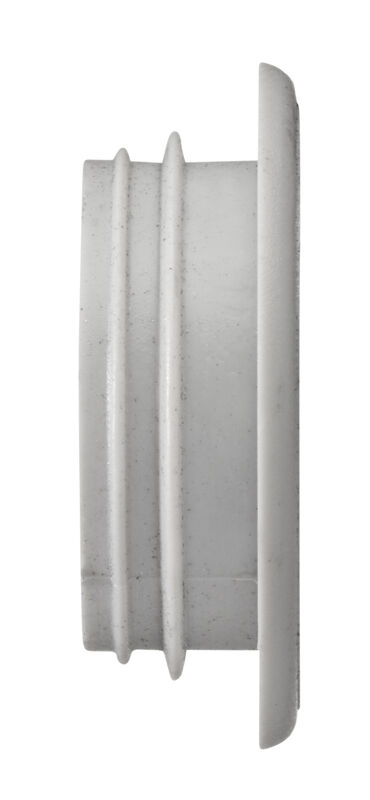

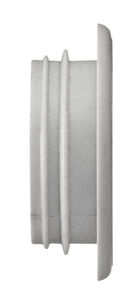

14	19	Light grey 2000-N	44004	200	Packaging	12
14	19	Light grey 2000-N	SB44004	10	Pack	10

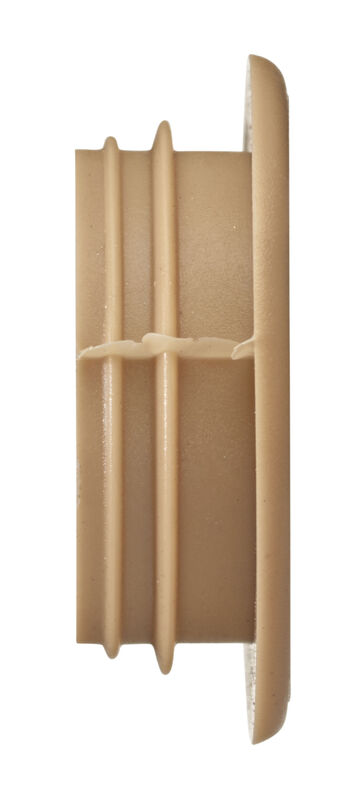

14	19	Pine 3020-Y30R	44002	200	Packaging	12
14	19	Pine 3020-Y30R	SB44002	10	Pack	10

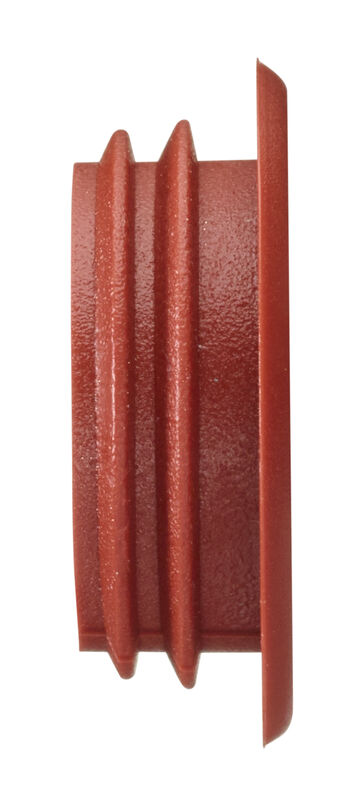

14	19	Red 4550-Y80R	44026	200	Packaging	12

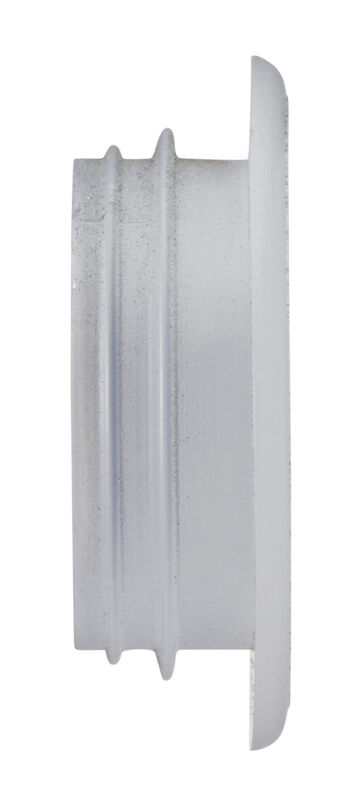

14	19	Transparent	44007	200	Packaging	12
14	19	Transparent	SB44007	10	Pack	10

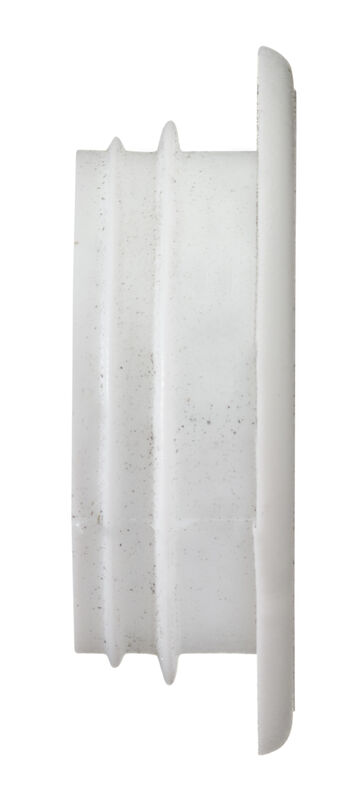

14	19	White 0500-N	44001	200	Packaging	12
14	22	White 0500-N	44008	200	Packaging	12
14	19	White 0500-N	SB44001	10	Pack	10
14	22	White 0500-N	SB44008	10	Pack	10
14	19	White 0502-Y	44031	200	Packaging	12
14	19	White 0502-Y	SB44031	10	Pack	10
16	19	Dark brown 8010-Y70R	44028	200	Packaging	12
16	19	Light grey 2000-N	44029	200	Packaging	12
16	19	Pine 3020-Y30R	44027	200	Packaging	12
16	19	White 0500-N	44009	200	Packaging	12
16	19	White 0500-N	SB44009	10	Pack	10

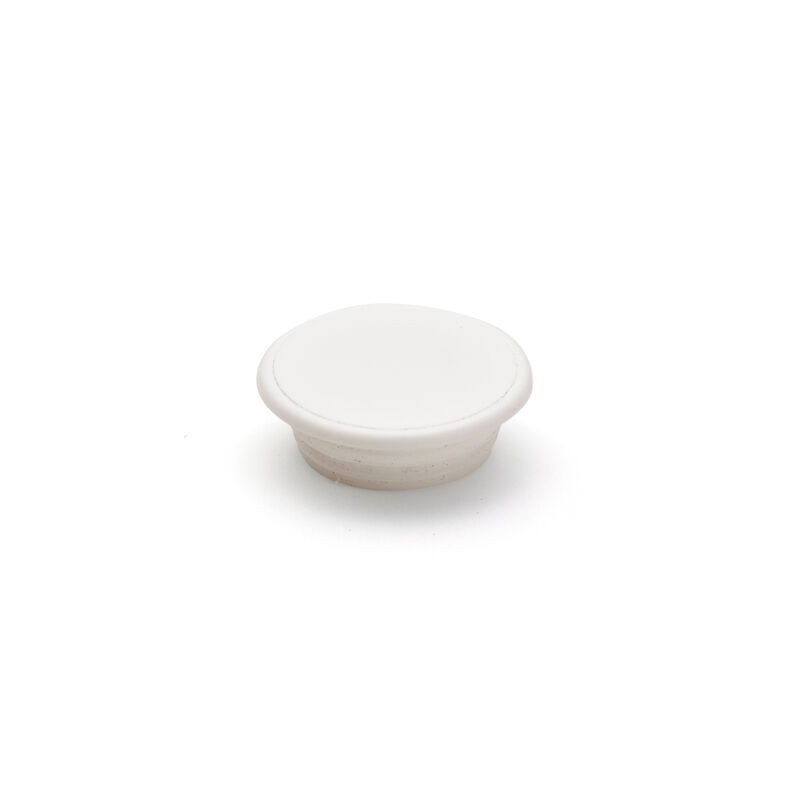

16	19	White 0502-Y	44039	200	Packaging	12
16	19	White 0502-Y	SB44039	10	Pack	10

NOTE: Packs are only sold in multiples of ten.
