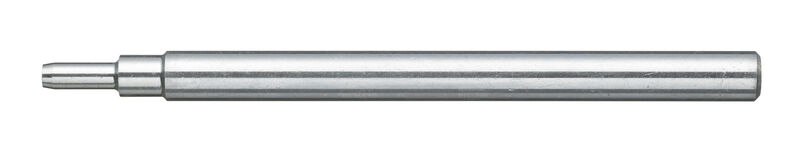

Punch for drop in anchor

Unit Guide
D Diameter
D1 Outer diameter
G Thread length
H Head diameter
L Length
M Thickness
MB Mother box
Drill cap. mm Drill capacity mm
Max comp. thick. app. mm Max component thickness application mm
Min. drill depth mm Minimum drill depth mm
Screw dim. mm Screw dimension mm
Surface treat. Surface treatment
D Art.no E-number Quantity Pack. MB
6 84607 1 Packaging 20
8 84608 1 Packaging 20
10 84609 1 Packaging 20
12 84610 1 Packaging 20
16 84611 1 Packaging 20
20 84612 1 Packaging 10
NOTE: The dimension is for the drop in anchor.
