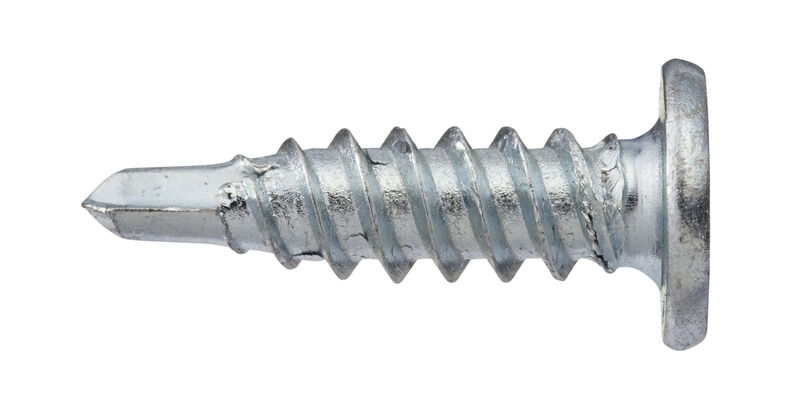

Round washer head screw for steel plate (low head) max 2 mm
- Function: Drill tip with single thread steel grooves, drills very quickly in steel thicknesses up to 2 mm. Suitable for assembly where an extremely low construction height is required.
- Track type bit: Philips 2.
- Material: Case hardened steel.
- Coating: Zinc-plated 5 my, for indoor use.
- Installation instructions: A power screwdriver with a speed of 2,000-3,000 rpm is recommended.
| D | Diameter |
| D1 | Outer diameter |
| G | Thread length |
| H | Head diameter |
| L | Length |
| M | Thickness |
| MB | Mother box |
| Drill cap. mm | Drill capacity mm |
| Max comp. thick. app. mm | Max component thickness application mm |
| Min. drill depth mm | Minimum drill depth mm |
| Screw dim. mm | Screw dimension mm |
| Surface treat. | Surface treatment |
| D | L | H | G | Art.no | E-number | Quantity | Pack. | MB |
|---|---|---|---|---|---|---|---|---|
| 4.2 | 15 | 7.6 | 15 | 7015 | 20000 | Bulk pack | ||
| 4.2 | 15 | 7.6 | 15 | 7115 | 1000 | Packaging | 12 | |
| 4.2 | 15 | 7.6 | 15 | 7915 | 250 | Packaging | 16 |
