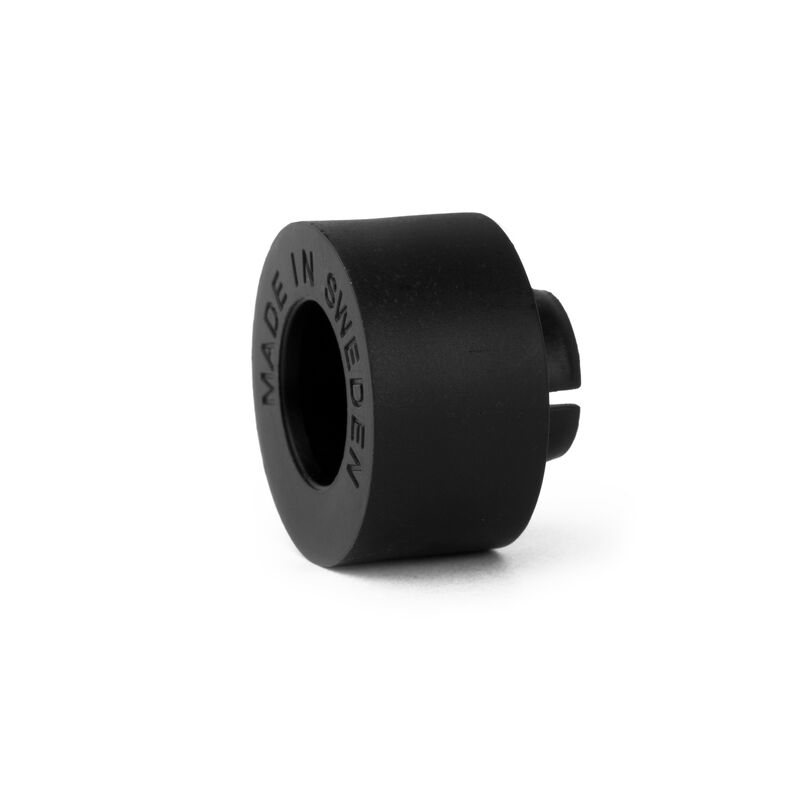

Space washer 10mm

• Function: The space washer is used for bigger distances between the frame and the surface. The space washer can be combined with a pressure distribution washer for a more stable installation.
• Material: Polypropylene
• Installation instructions: The space washer is snapped onto the bottom plate of the frame socket, use a maximum of 2 space washers. Adjust the screw length according to the number of space washers. After that, the frame socket is installed according to the instructions.

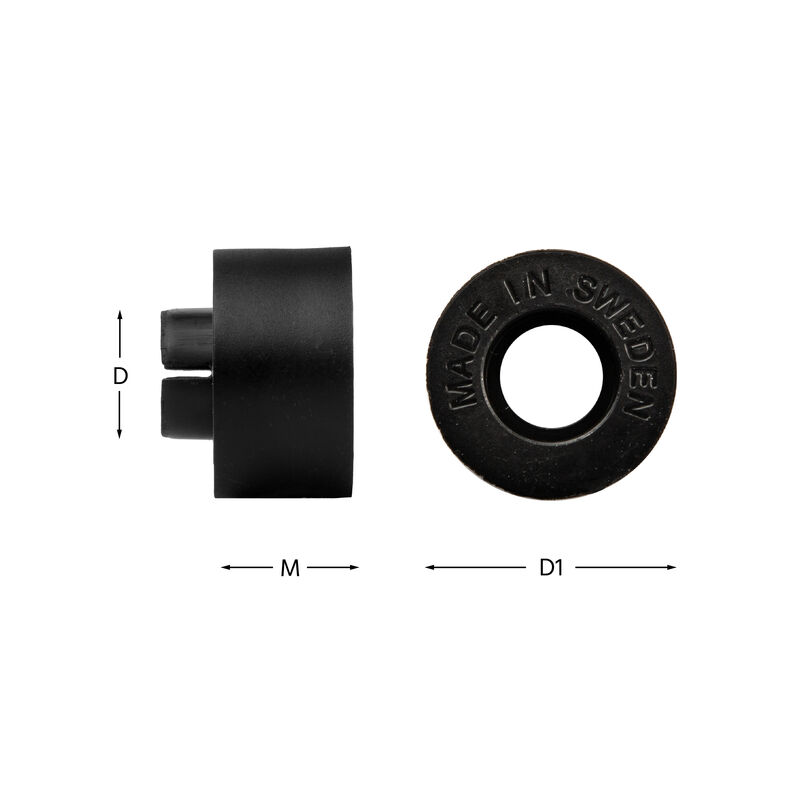

D	Diameter
D1	Outer diameter
G	Thread length
H	Head diameter
L	Length
M	Thickness
MB	Mother box
Drill cap. mm	Drill capacity mm
Max comp. thick. app. mm	Max component thickness application mm
Min. drill depth mm	Minimum drill depth mm
Screw dim. mm	Screw dimension mm
Surface treat.	Surface treatment
