SRKB

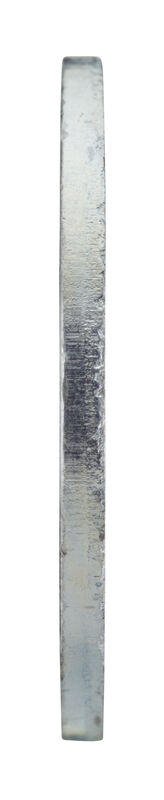

Function: &nbsp;Washer (bodywork washer) as set out in ISO 4759/3.
Material: &nbsp;Steel.
Coating: &nbsp;Zinc-plated 5 my, for indoor use.

Unit Guide

D	Diameter
D1	Outer diameter
G	Thread length
H	Head diameter
L	Length
M	Thickness
MB	Mother box
Drill cap. mm	Drill capacity mm
Max comp. thick. app. mm	Max component thickness application mm
Min. drill depth mm	Minimum drill depth mm
Screw dim. mm	Screw dimension mm
Surface treat.	Surface treatment

D	D1	M	Art.no	E-number	Quantity	Pack.	MB
5.5	22	1.5	555555	1530850	200	Packaging	16
5.5	25	1.5	555556	1530851	200	Packaging	16
7	19	1.5	555557	1530852	200	Packaging	16
7	22	1.5	555558	1530853	200	Packaging	16
7	25	1.5	555559	1530854	200	Packaging	16
7	28	2	555560	1530855	100	Packaging	16
7	35	2	555561	1530856	100	Packaging	16
9	28	2	555562	1530857	100	Packaging	16
9	35	2	555563	1530858	100	Packaging	12
11	28	2	555564	1530859	100	Packaging	16
11	35	2	555565	1530860	100	Packaging	16
12.5	28	2	555570	1530865	100	Packaging	16
12.5	35	2	555566	1530861	100	Packaging	12
17.5	50	3	5555689	1530863	50	Packaging	12
21	60	4	5555699	1530864	25	Packaging	12
