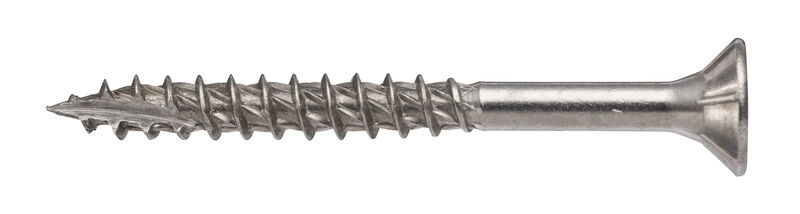

Wood screw TFT (A4 Stainless steel)

  • Function: Jetting Screws TFT A4 Stainless steel is a patented wood screw with countersunk head. The unique tightening features of the screw have been achieved by providing the screw with a cutting drill tip, deeper thread and head than normal wood screws, as well as with oblique and longitudinal flanks between the threads. This provides the following benefits:
    • Less risk of cracks in wood.
    • Lower torque when tightening.
    • Less screwing time.
  • Drive type: TX 15, 20, 25 and 30.
  • Material: Stainless steel (A4).
Unit Guide
D Diameter
D1 Outer diameter
G Thread length
H Head diameter
L Length
M Thickness
MB Mother box
Drill cap. mm Drill capacity mm
Max comp. thick. app. mm Max component thickness application mm
Min. drill depth mm Minimum drill depth mm
Screw dim. mm Screw dimension mm
Surface treat. Surface treatment
  • A4 Stainless steel Jetting screw.
D L G Bits/Socket Art.no Quantity Pack. MB
* 3.5 20 20 15 6703520 200 Packaging 16
* 3.5 30 18 15 6703530 200 Packaging 16
* 3.5 40 24 15 6703540 200 Packaging 16
4 30 18 20 6704030 200 Packaging 16
4 40 24 20 6704040 200 Packaging 16
4 50 30 20 6704050 200 Packaging 12
4.5 60 36 25 6704560 100 Packaging 16
4.5 70 42 25 6704570 100 Packaging 16
4.5 80 42 25 6704580 100 Packaging 12
5 50 30 25 6705050 200 Packaging 12
5 60 36 25 6705060 100 Packaging 16
5 70 42 25 6705070 100 Packaging 16
5 80 42 25 6705080 100 Packaging 12
5 90 42 25 6705090 100 Packaging 12
5 100 54 25 67050100 100 Packaging 8
5 120 72 25 67050120 100 Packaging 8
6 70 42 30 6706070 100 Packaging 12
6 80 42 30 6706080 100 Packaging 12
6 90 42 30 6706090 100 Packaging 12
6 100 54 30 67060100 100 Packaging 8
6 110 60 30 67060110 100 Packaging 8
6 120 72 30 67060120 100 Packaging 8
6 130 72 30 67060130 100 Packaging 8
6 140 72 30 67060140 100 Packaging 8
6 150 72 30 67060150 100 Packaging 8
*CE 14592 does not apply to this dimension. NOTE: Packs are only sold in multiples of ten.
