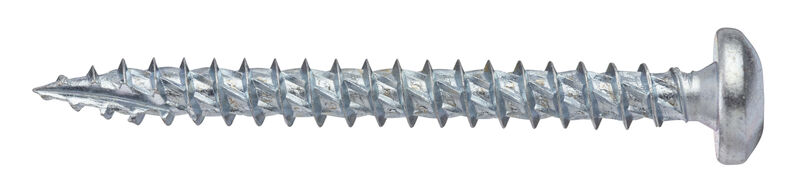

Wood screw TKT

  • Function: Jetting Screws TKT is a wood screw with rounded head. The unique tightening features of the screw have been achieved by providing the screw with a cutting drill tip, deeper thread and head than normal wood screws, as well as with oblique and longitudinal flanks between the threads. This provides the following benefits:
    • Less risk of cracks in wood.
    • Lower torque when tightening.
    • Less screwing time.
  • Track type bit: TX 10, 15, 20, 25 and 30.
  • Material: Case hardened steel.
  • Coating: Zinc-plated 5 my, for indoor use.
Unit Guide
D Diameter
D1 Outer diameter
G Thread length
H Head diameter
L Length
M Thickness
MB Mother box
Drill cap. mm Drill capacity mm
Max comp. thick. app. mm Max component thickness application mm
Min. drill depth mm Minimum drill depth mm
Screw dim. mm Screw dimension mm
Surface treat. Surface treatment
D L H G Bits/Socket Art.no E-number Quantity Pack. MB
* 3 12 6 12 10 1763012 200 Packaging 40
* 3 12 6 12 10 SB1763012 50 Pack 10
* 3 16 6 16 10 1763016 200 Packaging 40
* 3 16 6 16 10 SB1763016 50 Pack 10
* 3 20 6 20 10 1763020 200 Packaging 40
* 3 20 6 20 10 SB1763020 50 Pack 10
* 3 25 6 25 10 1763025 200 Packaging 40
* 3 25 6 25 10 SB1763025 50 Pack 10
* 3 30 6 30 10 1763030 200 Packaging 40
* 3 30 6 30 10 SB1763030 45 Pack 10
* 3.5 12 7 12 15 1763512 200 Packaging 40
* 3.5 12 7 12 15 SB1763512 50 Pack 10
* 3.5 16 7 16 15 1763516 200 Packaging 40
* 3.5 16 7 16 15 SB1763516 45 Pack 10
* 3.5 20 7 20 15 1763520 200 Packaging 40
* 3.5 20 7 20 15 SB1763520 45 Pack 10
* 3.5 25 7 25 15 1763525 200 Packaging 40
* 3.5 25 7 25 15 SB1763525 40 Pack 10
* 3.5 30 7 30 15 1763530 200 Packaging 16
* 3.5 30 7 30 15 SB1763530 40 Pack 10
* 3.5 35 7 35 15 1763535 200 Packaging 16
* 3.5 35 7 35 15 SB1763535 35 Pack 10
* 3.5 40 7 40 15 1763540 200 Packaging 16
* 3.5 40 7 40 15 SB1763540 35 Pack 10
4 16 8 16 20 17640169 200 Packaging 16
4 20 8 20 20 17640209 200 Packaging 16
4 20 8 20 20 SB1764020 40 Pack 10
4 25 8 25 20 1764025 200 Packaging 16
4 25 8 25 20 SB1764025 40 Pack 10
4 30 8 30 20 1764030 200 Packaging 16
4 30 8 30 20 SB1764030 35 Pack 10
4 35 8 35 20 1764035 200 Packaging 16
4 35 8 35 20 SB1764035 30 Pack 10
4 40 8 40 20 1764040 200 Packaging 16
4 40 8 40 20 SB1764040 30 Pack 10
4 45 8 45 20 1764045 200 Packaging 16
4 45 8 45 20 SB1764045 25 Pack 10
4 50 8 50 20 1764050 200 Packaging 16
4 50 8 50 20 SB1764050 20 Pack 10
* 4.5 16 9 16 25 1764516 200 Packaging 40
4.5 20 9 20 25 17645209 200 Packaging 16
4.5 20 9 20 25 SB1764520 35 Pack 10
4.5 25 9 25 25 1764525 200 Packaging 16
4.5 25 9 25 25 SB1764525 30 Pack 10
4.5 30 9 30 25 1764530 200 Packaging 16
4.5 30 9 30 25 SB1764530 25 Pack 10
4.5 35 9 35 25 1764535 200 Packaging 16
4.5 35 9 35 25 SB1764535 25 Pack 10
4.5 40 9 40 25 1764540 200 Packaging 16
4.5 40 9 40 25 SB1764540 20 Pack 10
4.5 45 9 45 25 1764545 200 Packaging 12
4.5 50 9 50 25 1764550 200 Packaging 12
4.5 50 9 50 25 SB1764550 15 Pack 10
5 20 10 20 25 1765020 200 Packaging 16
5 20 10 20 25 SB1765020 25 Pack 10
5 25 10 25 25 1765025 200 Packaging 16
5 25 10 25 25 SB1765025 25 Pack 10
5 30 10 30 25 1765030 200 Packaging 16
5 30 10 30 25 SB1765030 20 Pack 10
5 35 10 35 25 1765035 200 Packaging 16
5 35 10 35 25 SB1765035 20 Pack 10
5 40 10 40 25 1765040 200 Packaging 12
5 40 10 40 25 SB1765040 15 Pack 10
5 45 10 45 25 1765045 100 Packaging 16
5 50 10 50 25 1765050 100 Packaging 16
5 50 10 50 25 SB1765050 15 Pack 10
5 60 10 60 25 1765060 100 Packaging 16
5 60 10 60 25 SB1765060 10 Pack 10
5 70 10 70 25 1765070 100 Packaging 12
5 70 10 70 25 SB1765070 10 Pack 10
5 80 10 70 25 1765080 100 Packaging 12
5 80 10 70 25 SB1765080 9 Pack 10
6 40 12 40 30 1766040 100 Packaging 16
6 40 12 40 30 SB1766040 10 Pack 10
6 45 12 45 30 1766045 100 Packaging 16
6 50 12 50 30 1766050 100 Packaging 12
6 50 12 50 30 SB1766050 9 Pack 10
6 60 12 60 30 1766060 100 Packaging 12
6 60 12 60 30 SB1766060 8 Pack 10
6 70 12 70 30 1766070 100 Packaging 12
6 70 12 70 30 SB1766070 7 Pack 10
6 80 12 70 30 1766080 100 Packaging 12
6 80 12 70 30 SB1766080 6 Pack 10
6 90 12 70 30 1766090 100 Packaging 12
6 90 12 70 30 SB1766090 5 Pack 10
6 100 12 70 30 17660100 100 Packaging 12
6 100 12 70 30 SB17660100 4 Pack 10
*CE 14592 does not apply to this dimension. NOTE: Packs are only sold in multiples of ten.
