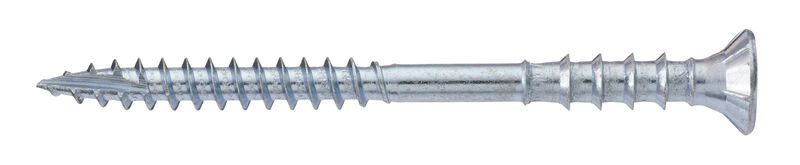

Adjuster screw

Function: Adjuster screw for installing of frames for internal doors and other wood components such as battens, studs etc. to wood.
Track type bit: TX 30.
Material: Case hardened steel.
Coating: Zinc-plated 5 my, for indoor use.
Installation instructions: Frame/wood component alignment is set both vertically and horizontally Now screw the screw through the frame/wood component into the surface. Now adjust the frame/wood component by turning the screw.

Unit Guide

D	Diameter
D1	Outer diameter
G	Thread length
H	Head diameter
L	Length
M	Thickness
MB	Mother box
Drill cap. mm	Drill capacity mm
Max comp. thick. app. mm	Max component thickness application mm
Min. drill depth mm	Minimum drill depth mm
Screw dim. mm	Screw dimension mm
Surface treat.	Surface treatment

D	L	G	Art.no	Quantity	Pack.	MB
6	60	30	B43060	2000	Bulk pack
6	60	30	43060	100	Packaging	8
6	60	30	SB43060	6	Pack	10
6	80	40	B43080	1500	Bulk pack
6	80	40	43080	100	Packaging	8
6	80	40	SB43080	6	Pack	10
6	100	60	B43100	1200	Bulk pack
6	100	60	43100	100	Packaging	8
6	100	60	SB43100	6	Pack	10
6	120	60	B43120	1000	Bulk pack
6	120	60	43120	100	Packaging	8
6	120	60	SB43120	4	Pack	10
6	140	60	B43140	900	Bulk pack
6	140	60	43140	100	Packaging	8
6	140	60	SB43140	4	Pack	10

NOTE: Packs are only sold in multiples of ten.
