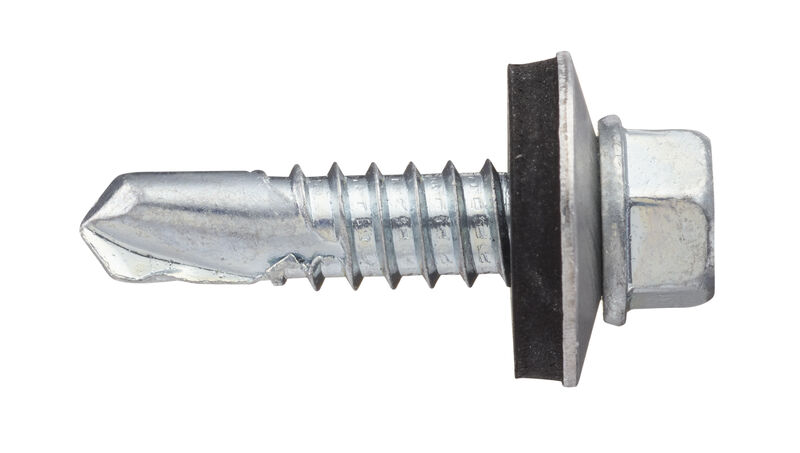

Building sheet screw for beams max 6,4 mm

  • Function: Drill tip with diameter adapted to suit sheet metal, drills in beams up to 6.4 mm. Hexagon head with flange for safe tightening. Sealing washer for secure seal.
  • Track type bit: Sleeve 8 mm.
  • Material: Case hardened steel and aluminium washer with vulcanised EPDM rubber.
  • Coating: Zinc-plated 8 my, for indoor use.
  • Installation instructions: A power screwdriver with a speed of 1,500-2,500 rpm is recommended.
Unit Guide
D Diameter
D1 Outer diameter
G Thread length
H Head diameter
L Length
M Thickness
MB Mother box
Drill cap. mm Drill capacity mm
Max comp. thick. app. mm Max component thickness application mm
Min. drill depth mm Minimum drill depth mm
Screw dim. mm Screw dimension mm
Surface treat. Surface treatment
D L Min drill cap. mm Max drill cap. mm Art.no Quantity Pack. MB
5.5 25 1.3 6 48111 250 Packaging 8
6.3 25 1.3 6.4 48129 250 Packaging 8
