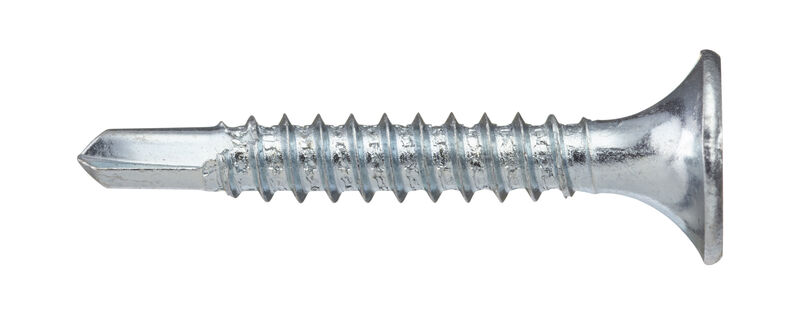

Collated drywall screw for steel plate max 2 mm
- Function: Drill tip with single thread steel grooves, drills very quickly in steel thicknesses up to 2 mm, and sinks into the drywall without damaging the cardboard layer.
- Track type bit: Philips 2.
- Material: Case hardened steel.
- Coating: Zinc-plated 5 my, for indoor use.
- Installation instructions: A power screwdriver with a speed of 2,000-3,000 rpm is recommended.
- Sizing: Around 15 pcs/m², screw spacing 20 cm on the edge of the plate and 30 cm on the inner section.
| D | Diameter |
| D1 | Outer diameter |
| G | Thread length |
| H | Head diameter |
| L | Length |
| M | Thickness |
| MB | Mother box |
| Drill cap. mm | Drill capacity mm |
| Max comp. thick. app. mm | Max component thickness application mm |
| Min. drill depth mm | Minimum drill depth mm |
| Screw dim. mm | Screw dimension mm |
| Surface treat. | Surface treatment |
| D | L | G | Art.no | E-number | Quantity | Pack. | MB | |
|---|---|---|---|---|---|---|---|---|
| 3.5 | 25 | 20 | RB5025 | 1000 | Packaging | 10 | ||
| 3.5 | 42 | 37 | RB5042 | 1000 | Packaging | 10 | ||
| 3.9 | 51 | 46 | RB5051 | 1000 | Packaging | 8 |
