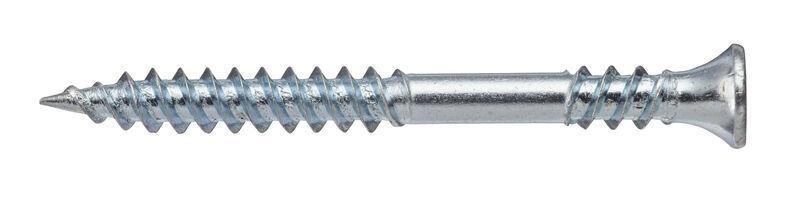

Collated hard drywall screw for steel plate max 1 mm
- Function: Sharp tip with double thread grooves that grip immediately and penetrate the steel plate very quickly. The reversing threads underneath the head allows the screw to sink into the drywall board without any problems.
- Track type bit: Philips 2.
- Material: Case hardened steel.
- Coating: Zinc-plated 5 my, for indoor use.
- Installation instructions: A power screwdriver with a speed of 2,000-5,000 rpm is recommended.
- Sizing: Around 15 pcs/m², screw spacing 20 cm on the edge of the plate and 30 cm on the inner section.
| D | Diameter |
| D1 | Outer diameter |
| G | Thread length |
| H | Head diameter |
| L | Length |
| M | Thickness |
| MB | Mother box |
| Drill cap. mm | Drill capacity mm |
| Max comp. thick. app. mm | Max component thickness application mm |
| Min. drill depth mm | Minimum drill depth mm |
| Screw dim. mm | Screw dimension mm |
| Surface treat. | Surface treatment |
| D | L | G | Art.no | E-number | Quantity | Pack. | MB | |
|---|---|---|---|---|---|---|---|---|
| 3.9 | 25 | 15 | RBS1025 | 1000 | Packaging | 10 | ||
| 3.9 | 41 | 22 | RBS1041 | 1000 | Packaging | 10 |
