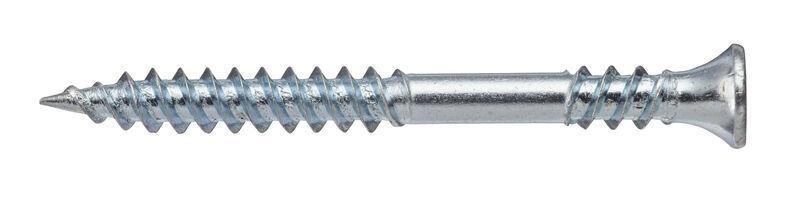

Collated hard drywall screw for steel plate max 1 mm

  • Function: Sharp tip with double thread grooves that grip immediately and penetrate the steel plate very quickly. The reversing threads underneath the head allows the screw to sink into the drywall board without any problems.
  • Drive type: Philips 2.
  • Material: Case hardened steel.
  • Surface treatment: Zinc-plated 5 my, for indoor use.
  • Installation instruction: A power screwdriver with a speed of 2,000-5,000 rpm is recommended.
  • Dimension: Around 15 pcs/m², screw spacing 20 cm on the edge of the plate and 30 cm on the inner section.
Unit Guide
D Diameter
D1 Outer diameter
G Thread length
H Head diameter
L Length
M Thickness
MB Mother box
Drill cap. mm Drill capacity mm
Max comp. thick. app. mm Max component thickness application mm
Min. drill depth mm Minimum drill depth mm
Screw dim. mm Screw dimension mm
Surface treat. Surface treatment
D L G Art.no Quantity Pack. MB
3.9 25 15 RBS1025 1000 Packaging 10
3.9 41 22 RBS1041 1000 Packaging 10
