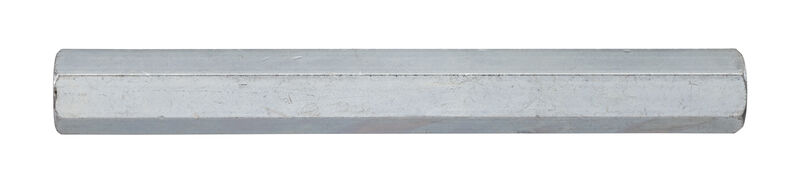

Combined installation and adjuster tool (unhardened) for mechanical installation

  • Function: Combined installation and adjuster tool (unhardened) for mechanical installation of frame screw and frame sockets.
Unit Guide
D Diameter
D1 Outer diameter
G Thread length
H Head diameter
L Length
M Thickness
MB Mother box
Drill cap. mm Drill capacity mm
Max comp. thick. app. mm Max component thickness application mm
Min. drill depth mm Minimum drill depth mm
Screw dim. mm Screw dimension mm
Surface treat. Surface treatment
Name Art.no Quantity Pack. MB
Mechanical tool 44011 1 Packaging 10
Mechanical tool long 440119 1 Packaging 10
