Installation instructions Concrete screw

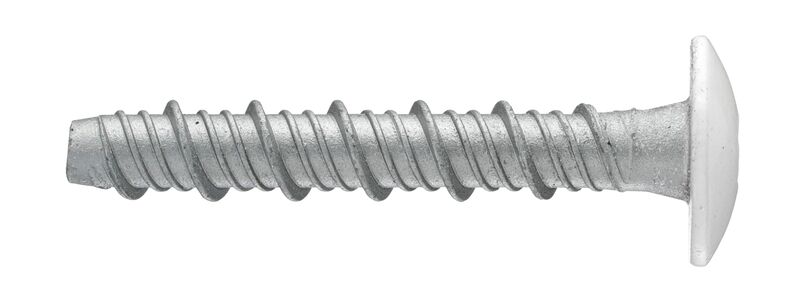

Concrete screw Wafer coloured
- Function: Specially-hardened screw that is screwed directly into a pre-drilled hole without any plug. The concrete screw is used for installing in concrete.
- Track type bit: TX 30.
- Material: Case hardened steel.
- Coating: White lacquered RAL 9010, for indoor use.
- Installation instructions: Drill a hole adapted to suit the size of the concrete screw as shown in the table below. Now screw in the concrete screw perpendicular to the substrate. When the screw reaches the substrate, further tightening must be avoided.
| D | Diameter |
| D1 | Outer diameter |
| G | Thread length |
| H | Head diameter |
| L | Length |
| M | Thickness |
| MB | Mother box |
| Drill cap. mm | Drill capacity mm |
| Max comp. thick. app. mm | Max component thickness application mm |
| Min. drill depth mm | Minimum drill depth mm |
| Screw dim. mm | Screw dimension mm |
| Surface treat. | Surface treatment |
| D | L | G | Max comp. thick. app. mm | Drill mm | Art.no | E-number | Quantity | Pack. | MB |
|---|---|---|---|---|---|---|---|---|---|
| 7.5 | 45 | 45 | 5 | 6 | BV737545 | 1500 | Bulk pack | ||
