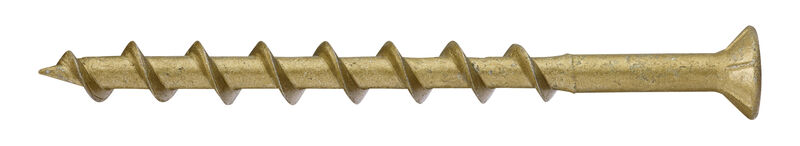

Lightweight concrete screw countersunk (external)

Function: Type-approved countersunk screw, No. SC0621-09, with specially designed thread that is screwed directly into the lightweight concrete and lightweight tiles without pre-drilling.
Track type bit: TX 30 and 40.
Material: Case hardened steel.
Coating: Zincotech Au, corrosivity class C4, for outdoor use.
Installation instructions: Screw in the screw without pre-drilling the lightweight concrete/lightweight tiles, screw with a low torque to avoid over-tightening the screw. In the event of any uncertainty surrounding the quality of lightweight concrete/lightweight tiles, test tightening should be performed.

Unit Guide

D	Diameter
D1	Outer diameter
G	Thread length
H	Head diameter
L	Length
M	Thickness
MB	Mother box
Drill cap. mm	Drill capacity mm
Max comp. thick. app. mm	Max component thickness application mm
Min. drill depth mm	Minimum drill depth mm
Screw dim. mm	Screw dimension mm
Surface treat.	Surface treatment

	D	L	G	Bits/Socket	Max comp. thick. app. mm	Art.no	E-number	Quantity	Pack.	MB
*	8	70	65	30		B75870		850	Bulk pack
*	8	70	65	30		75870	1533169	50	Packaging	16
*	8	70	65	30		SB75870		6	Pack	10
*	8	90	65	30	20	B75890		1000	Bulk pack
*	8	90	65	30	20	75890		50	Packaging	12
*	8	90	65	30	20	SB75890		5	Pack	10
	8	120	75	30	50	B758120		600	Bulk pack
	8	120	75	30	50	758120	1533168	50	Packaging	8
	8	120	75	30	50	SB758120		4	Pack	10
	8	140	75	30	70	B758140		500	Bulk pack
	8	140	75	30	70	758140		50	Packaging	8
	8	140	75	30	70	SB758140		4	Pack	10
	8	160	75	30	90	B758160		400	Bulk pack
	8	160	75	30	90	758160		50	Packaging	12
	8	160	75	30	90	SB758160		3	Pack	10
	10	140	95	40	50	B7510140		500	Bulk pack
	10	140	95	40	50	7510140		50	Packaging	8
	10	140	95	40	50	SB7510140		3	Pack	10
	10	180	95	40	90	B7510180		350	Bulk pack
	10	180	95	40	90	7510180		50	Packaging	12
	10	180	95	40	90	SB7510180		2	Pack	10

*Type approval SC0621-09 does not apply to this dimension. NOTE: Packs are only sold in multiples of ten.
