Technical information
Construction declaration Product datasheet - en Product datasheet - no Product datasheet - sv

MVBF (external)

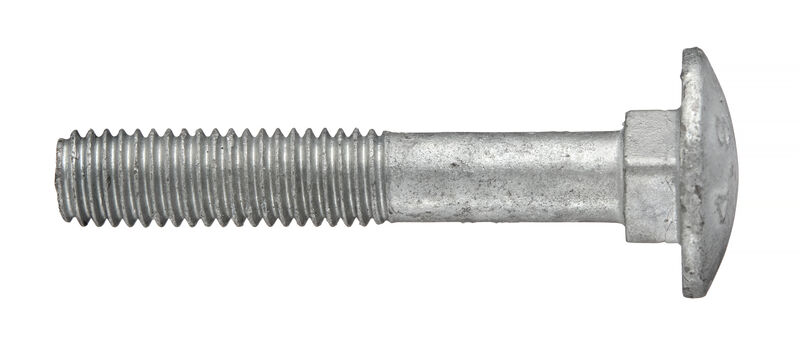

  • Function: Bolt (trolley bolt) 4.8 with pan head and square as set out in DIN 603.
  • Material: Screw steel 4.8. Hexagon nut steel strength class 4.
  • Coating: Hot-dip galvanised, for outdoor use.
Unit Guide
D Diameter
D1 Outer diameter
G Thread length
H Head diameter
L Length
M Thickness
MB Mother box
Drill cap. mm Drill capacity mm
Max comp. thick. app. mm Max component thickness application mm
Min. drill depth mm Minimum drill depth mm
Screw dim. mm Screw dimension mm
Surface treat. Surface treatment
D L Art.no E-number Quantity Pack. MB
8 40 91840 1534657 100 Packaging 6
8 50 91850 1534658 100 Packaging 6
8 60 91860 1534659 100 Packaging 6
8 70 91870 1534660 50 Packaging 8
8 80 91880 1534661 50 Packaging 6
8 90 91890 1534662 50 Packaging 6
8 100 918100 1534655 50 Packaging 6
8 120 918120 1534656 50 Packaging 6
10 60 911060 1534579 50 Packaging 6
10 70 911070 1534589 50 Packaging 6
10 80 911080 1534598 50 Packaging 6
10 90 911090 1534599 25 Packaging 8
10 100 9110100 1534568 25 Packaging 8
10 120 9110120 1534569 25 Packaging 8
10 140 9110140 1534578 25 Packaging 6
12 80 911280 1534652 25 Packaging 6
12 90 911290 1534653 25 Packaging 6
12 100 9112100 1534649 25 Packaging 6
12 120 9112120 1534651 20 Packaging 6
Note! Hexagon nut included.
