Thonic tc-bd fire EI30 and EI60

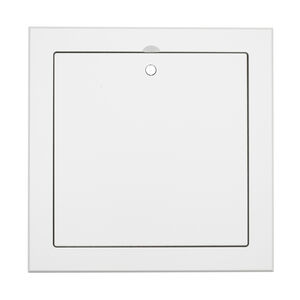

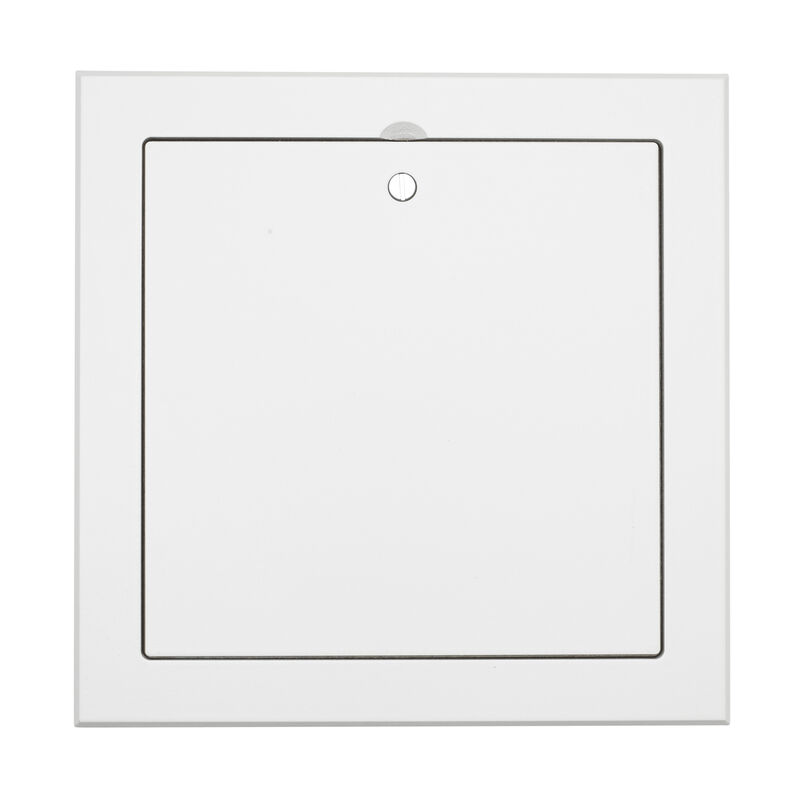

Function: Thonic tc-bd is a fire rated type approved inspection hatch fitted with a surface mounted frame. Installation is very quick as the fastening plates are pre-assembled and knocked out with a hammer between the first and second drywall boards. The hatch comes in standard size from 150 x 150 to 600 x 600 mm. Thonic tc-bd is delivered white painted, NCS S 0502-Y. The hatch is fitted with a countersunk drive lock. Thonic tc-ue can be customised with other sizes, in any colour or with optional accessories such as a range of hinges, lock models, etc. The type approvals in question are no. 0118/04 (EI30) and no. 0117/04 (EI60).

Unit Guide

D	Diameter
D1	Outer diameter
G	Thread length
H	Head diameter
L	Length
M	Thickness
MB	Mother box
Drill cap. mm	Drill capacity mm
Max comp. thick. app. mm	Max component thickness application mm
Min. drill depth mm	Minimum drill depth mm
Screw dim. mm	Screw dimension mm
Surface treat.	Surface treatment

Hole making measurements	Design	Frame external dimensions	Light dimensions	Number of fixing pads	Locking	Art.no	Quantity
150 x 150	EI30	190 x 190	113 x 113	4	Driver lock	3015	1
200 x 200	EI30	240 x 240	163 x 163	4	Driver lock	3020	1
300 x 300	EI30	340 x 340	263 x 263	8	Driver lock	3030	1
400 x 400	EI30	440 x 440	363 x 363	8	Driver lock	3040	1
500 x 500	EI30	540 x 540	463 x 463	8	Driver lock	3050	1
600 x 600	EI30	640 x 640	563 x 563	12	Driver lock	3060	1
150 x 150	EI60	190 x 190	113 x 113	4	Driver lock	6015	1
200 x 200	EI60	240 x 240	163 x 163	4	Driver lock	6020	1
300 x 300	EI60	340 x 340	263 x 263	8	Driver lock	6030	1
400 x 400	EI60	440 x 440	363 x 363	8	Driver lock	6040	1
500 x 500	EI60	540 x 540	463 x 463	8	Driver lock	6050	1
600 x 600	EI60	640 x 640	563 x 563	12	Driver lock	6060	1
