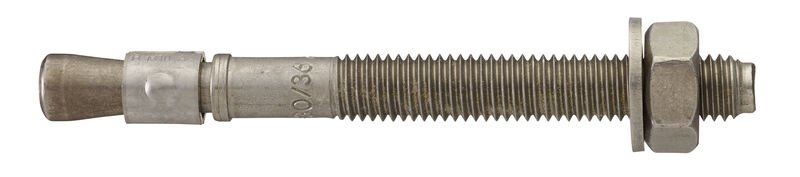

Wedge anchor (A4 stainless steel)

Function: European technically approved wedge anchor (ETA-01/0013, ETA-06/0155) for installing in concrete.
Material: Stainless steel (A4).
Installation instructions: Drill a hole adapted to suit the size of the wedge anchor as shown in the table below. Now knock the wedge anchor into the hole with a hammer. Tighten the nut according to the instructed tightening torque in the same table.

Unit Guide

D	Diameter
D1	Outer diameter
G	Thread length
H	Head diameter
L	Length
M	Thickness
MB	Mother box
Drill cap. mm	Drill capacity mm
Max comp. thick. app. mm	Max component thickness application mm
Min. drill depth mm	Minimum drill depth mm
Screw dim. mm	Screw dimension mm
Surface treat.	Surface treatment

	D	L	Min. drill depth mm	Max comp. thick. app. mm	Drill mm	Art.no	E-number	Quantity	Pack.	MB
*	6	40			6	84301	1509702	200	Packaging	8
	6	67	55	10	6	84302	1509705	150	Packaging	8
	6	97	55	40	6	84303	1509708	100	Packaging	8
*	8	50			8	84304	1509722	100	Packaging	8
	8	75	65	10	8	84305	1509725	50	Packaging	8
	8	95	65	30	8	84306	1509728	50	Packaging	8
	8	120	65	55	8	84307	1509731	50	Packaging	8
*	10	60			10	84308	1509742	50	Packaging	8
	10	85	70	10	10	84309	1509745	50	Packaging	6
	10	105	70	30	10	84310	1509748	25	Packaging	8
	10	125	70	50	10	84311	1509751	25	Packaging	8
	10	145	70	70	10	84312	1509754	25	Packaging	6
	10	175	70	100	10	84313	1509757	25	Packaging	6
*	12	75			12	84314	1509762	25	Packaging	8
	12	95			12	84315	1509765	25	Packaging	8
	12	125	90	30	12	84316	1509768	25	Packaging	6
	12	145	90	50	12	84317	1509771	25	Packaging	6
	12	180	90	85	12	84318	1509774	20	Packaging	6
	12	200	90	105	12	84319	1509777	20	Packaging	6
	16	115			16	84320	1509782	10	Packaging	8
	16	150	110	30	16	84321	1509785	10	Packaging	6
	20	180	130	35	20	84322	1509792	5	Packaging	6
	20	240	130	95	20	84323	1509796	5	Packaging	6

*Approval ETA-01/0013 does not apply to this dimension.
