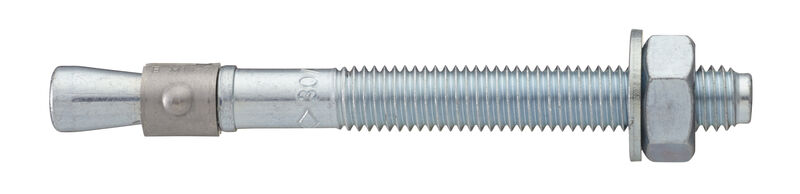

Wedge anchor

Function: European technically approved edge anchor (ETA-01/0013) for installing in concrete.
Material: Steel.
Coating: Zinc-plated, for indoor use.
Installation instructions: Drill a hole adapted to suit the size of the wedge anchor as shown in the table below. Now knock the wedge anchor into the hole with a hammer. Tighten the nut according to the instructed tightening torque in the same table.

Unit Guide

D	Diameter
D1	Outer diameter
G	Thread length
H	Head diameter
L	Length
M	Thickness
MB	Mother box
Drill cap. mm	Drill capacity mm
Max comp. thick. app. mm	Max component thickness application mm
Min. drill depth mm	Minimum drill depth mm
Screw dim. mm	Screw dimension mm
Surface treat.	Surface treatment

	D	L	Min. drill depth mm	Max comp. thick. app. mm	Drill mm	Art.no	E-number	Quantity	Pack.	MB
*	6	40			6	84101	1509700	200	Packaging	8
	6	67	55	10	6	84102	1509703	150	Packaging	8
	6	97	55	40	6	84103	1509706	100	Packaging	8
*	8	50			8	84104	1509720	100	Packaging	8
	8	75	65	10	8	84105	1509723	50	Packaging	8
	8	95	65	30	8	84106	1509726	50	Packaging	8
	8	120	65	55	8	84107	1509729	50	Packaging	8
*	10	60			10	84108	1509740	50	Packaging	8
	10	85	70	10	10	84109	1509743	50	Packaging	6
	10	105	70	30	10	84110	1509746	25	Packaging	8
	10	125	70	50	10	84111	1509749	25	Packaging	8
	10	145	70	70	10	84112	1509752	25	Packaging	6
	10	175	70	100	10	84113	1509755	25	Packaging	6
*	12	75			12	84114	1509760	25	Packaging	8
	12	95			12	84115	1509763	25	Packaging	8
	12	125	90	30	12	84116	1509766	25	Packaging	6
	12	145	90	50	12	84117	1509769	25	Packaging	6
	12	180	90	85	12	84118	1509772	20	Packaging	6
	12	200	90	105	12	84119	1509775	20	Packaging	6
	12	240	90	145	12	84120	1509778	10	Packaging	6
	16	115			16	84121	1509780	10	Packaging	8
	16	150	110	30	16	84122	1509783	10	Packaging	6
	16	200	110	80	16	84123	1509786	10	Packaging	6
	20	180	130	35	20	84124	1509790	5	Packaging	6
	20	205	130	60	20	84125	1509793	5	Packaging	6
	20	240	130	95	20	84126	1509794	5	Packaging	6

*Approval ETA-01/0013 does not apply to this dimension.
