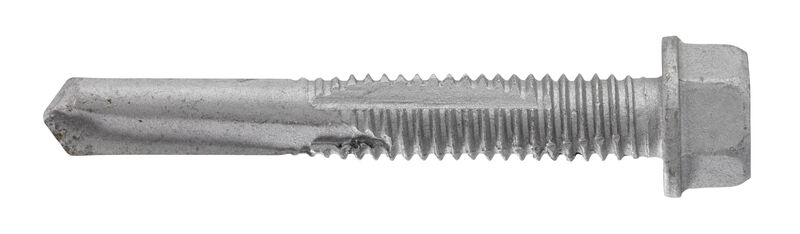

Building sheet screw (external) for beam (without washer) max 12,5 mm

  • Function: Drill tip with diameter adapted to suit sheet metal, drills in beams from 4.0 mm up to 12.5 mm. Hexagon head with flange for safe tightening.
  • Track type bit: Sleeve 8 mm.
  • Material: Case hardened steel
  • Coating: Zytec™ M, for outdoor use.
  • Installation instructions: A power screwdriver with a speed of 1,500-2,500 rpm is recommended.
Unit Guide
D Diameter
D1 Outer diameter
G Thread length
H Head diameter
L Length
M Thickness
MB Mother box
Drill cap. mm Drill capacity mm
Max comp. thick. app. mm Max component thickness application mm
Min. drill depth mm Minimum drill depth mm
Screw dim. mm Screw dimension mm
Surface treat. Surface treatment
D L E-number Quantity Pack. MB
5.5 32 48130 250 Packaging 8
5.5 38 48112 1531282 250 Packaging 8
