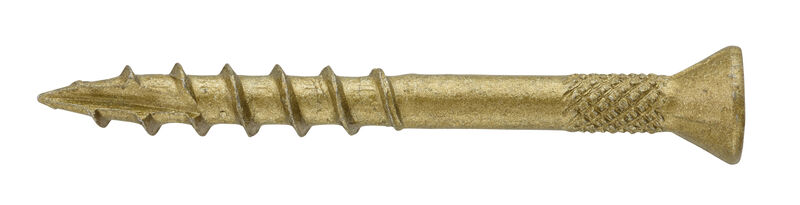

Collated decking screw (external) for wood stud
- Function: Sharp tip and threads adapted for anchoring in wood. The threads grip immediately and tighten the screw to the decking, while the grooves underneath the head sink the screw. The screw also has a cutting drill tip to prevent cracks forming in the wood. Suitable for installation of decking, balconies, fences etc.
- Track type bit: Philips 2.
- Material: Case hardened steel.
- Coating: Zincotech Au, corrosivity class C4, for outdoor use.
- Installation instructions: A power screwdriver with a speed of 2,000-3,000 rpm are recommended, countersunk head approx 2mm.
- Sizing: About 30 pcs/m².
| D | Diameter |
| D1 | Outer diameter |
| G | Thread length |
| H | Head diameter |
| L | Length |
| M | Thickness |
| MB | Mother box |
| Drill cap. mm | Drill capacity mm |
| Max comp. thick. app. mm | Max component thickness application mm |
| Min. drill depth mm | Minimum drill depth mm |
| Screw dim. mm | Screw dimension mm |
| Surface treat. | Surface treatment |
| D | L | G | Max comp. thick. app. mm | Art.no | E-number | Quantity | Pack. | MB | |
|---|---|---|---|---|---|---|---|---|---|
| 4.2 | 41 | 22 | 22 | RB241 | 1000 | Packaging | 6 | ||
| 4.2 | 51 | 22 | 28 | RB251 | 1000 | Packaging | 8 | ||
| 4.2 | 55 | 24 | 28 | RB255 | 1000 | Packaging | 6 |
