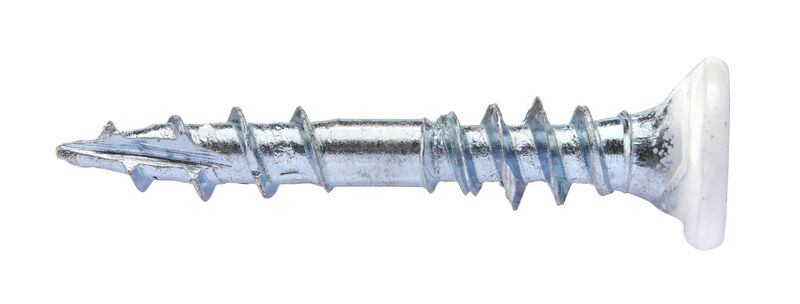

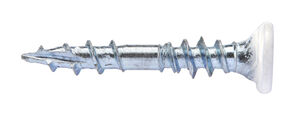

Furnishing screw for wood stud
- Function: Wood screw with countersunk head. Suitable for attaching cabinet frames and other board materials.
- Track type bit: TX 20.
- Material: Case hardened steel.
- Coating: ZP = Zinc-plated 5 my, WHITE = white lacquered RAL 9010, for indoor use.
| D | Diameter |
| D1 | Outer diameter |
| G | Thread length |
| H | Head diameter |
| L | Length |
| M | Thickness |
| MB | Mother box |
| Drill cap. mm | Drill capacity mm |
| Max comp. thick. app. mm | Max component thickness application mm |
| Min. drill depth mm | Minimum drill depth mm |
| Screw dim. mm | Screw dimension mm |
| Surface treat. | Surface treatment |
| D | L | Surface treat. | G | Art.no | Quantity | Pack. | MB |
|---|---|---|---|---|---|---|---|
| 4 | 28 | WHITE | 12 | V4028 | 10000 | Bulk pack | |
| 4 | 28 | WHITE | 12 | V4928 | 250 | Packaging | 16 |
| 4 | 28 | WHITE | 12 | SBV4928 | 25 | Pack | 10 |
| 4 | 28 | ZP | 12 | 4028 | 10000 | Bulk pack | |
| 4 | 28 | ZP | 12 | 4928 | 250 | Packaging | 16 |
| 4 | 28 | ZP | 12 | SB4928 | 25 | Pack | 10 |
