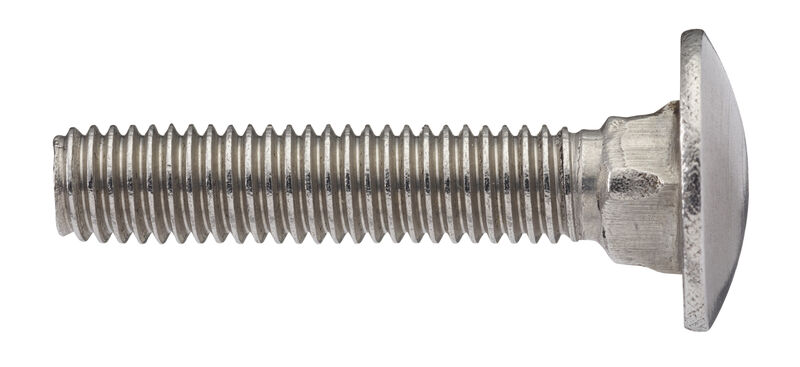

MVBF (A2 stainless steel)

  • Function: Bolt (trolley bolt) with pan head and square as set out in DIN 603.
  • Material: Stainless steel (A2).
Unit Guide
D Diameter
D1 Outer diameter
G Thread length
H Head diameter
L Length
M Thickness
MB Mother box
Drill cap. mm Drill capacity mm
Max comp. thick. app. mm Max component thickness application mm
Min. drill depth mm Minimum drill depth mm
Screw dim. mm Screw dimension mm
Surface treat. Surface treatment
  • MVBF (A2 stainless steel) is fully threaded.
D L Art.no Quantity Pack. MB
6 20 92620 100 Packaging 16
6 30 92630 100 Packaging 12
6 40 92640 100 Packaging 12
6 50 92650 100 Packaging 12
6 60 92660 100 Packaging 6
6 80 92680 100 Packaging 6
8 30 92830 100 Packaging 12
8 40 92840 100 Packaging 6
8 50 92850 100 Packaging 6
8 60 92860 100 Packaging 6
8 70 92870 50 Packaging 8
8 80 92880 50 Packaging 6
8 100 928100 50 Packaging 6
8 120 928120 50 Packaging 6
10 60 921060 50 Packaging 6
10 80 921080 50 Packaging 6
10 100 9210100 25 Packaging 8
10 120 9210120 25 Packaging 8
10 140 9210140 25 Packaging 6
10 150 9210150 25 Packaging 6
12 60 921260 25 Packaging 8
12 70 921270 25 Packaging 6
12 80 921280 25 Packaging 6
12 100 9212100 25 Packaging 6
12 120 9212120 20 Packaging 6
12 140 9212140 20 Packaging 6
