Installation instructions Nylon plug

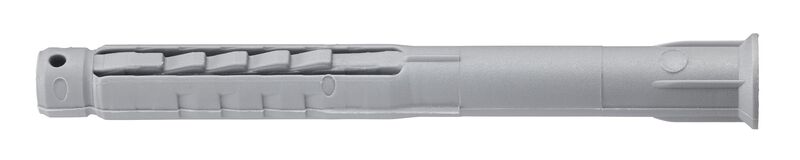

Nylon plug UNIVERSAL

  • Function: Solid plug with good temperature and ageing properties. The plug has a four-sided anchoring section and is designed to be used with most building materials such as concrete, lightweight concrete, hollow block etc.
  • Material: Nylon.
  • Installation instructions: Drill a hole adapted to suit the size of the plug as shown in the table below. Push the plug into the hole until the collar is firmly flush to the fastener. Now screw in the screw adapted to suit the plug a shown in the same table. The length of the screw should be about 5 mm longer than the plug and attachment together.
Unit Guide
D Diameter
D1 Outer diameter
G Thread length
H Head diameter
L Length
M Thickness
MB Mother box
Drill cap. mm Drill capacity mm
Max comp. thick. app. mm Max component thickness application mm
Min. drill depth mm Minimum drill depth mm
Screw dim. mm Screw dimension mm
Surface treat. Surface treatment
D L Max comp. thick. app. mm Drill mm Screw dim. mm Quantity Pack. MB
10 80 20 10 6,0-8,0 341080 25 Packaging 16
10 100 40 10 6,0-8,0 3410100 25 Packaging 12
10 120 60 10 6,0-8,0 3410120 25 Packaging 8
