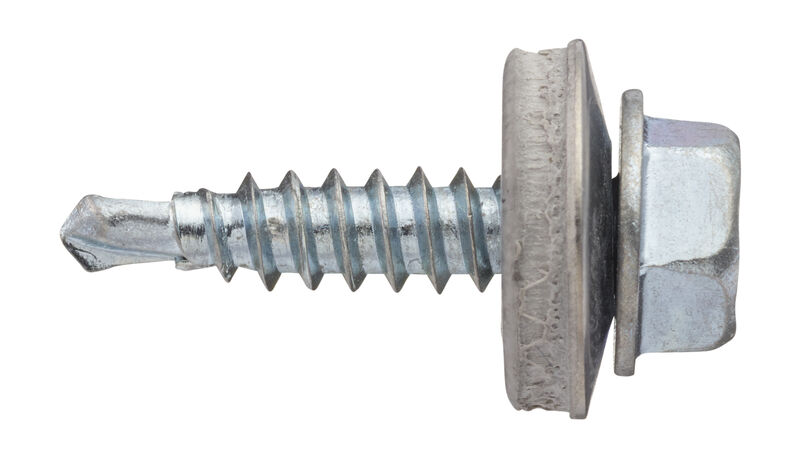

Overlap screw (A2 stainless steel/bi metal) for sheet metal max 2 x 1,25 mm

  • Function: Drill tip for sheet metal up to 2 x 1.25 mm. Sheet metal thread for overlap function. Hexagon head with flange for safe tightening. Sealing washer for secure seal.
  • Track type bit: Clamping sleeve 8 mm.
  • Material: Stainless steel (A2) with welded drill tip in case hardened steel and aluminium washer with vulcanised EPDM rubber.
  • Installation instructions: A power screwdriver with a speed of 1,500-2,500 rpm is recommended.
Unit Guide
D Diameter
D1 Outer diameter
G Thread length
H Head diameter
L Length
M Thickness
MB Mother box
Drill cap. mm Drill capacity mm
Max comp. thick. app. mm Max component thickness application mm
Min. drill depth mm Minimum drill depth mm
Screw dim. mm Screw dimension mm
Surface treat. Surface treatment
D L Art.no E-number Quantity Pack. MB
4.8 23 48102 250 Packaging 8
