Installation instructions Speed plug

Speed ​​plug + Electrical screw

  • Function: Self-drilling attachment for easier installation in plasterboard.
  • Material: Zinc plated and case hardened steel.

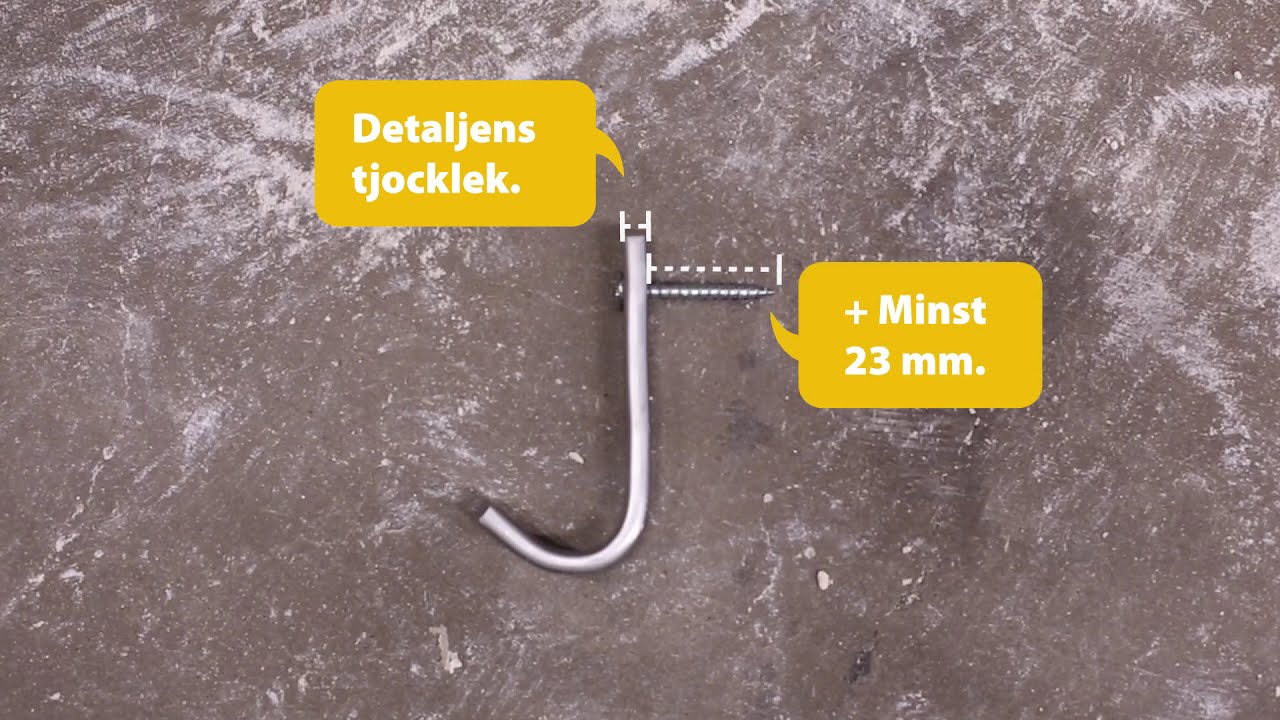

  • Installation instructions: Screwed directly into the drywall without drilling. The fastening is then fitted with the screw that is adapted to suit the attachment as shown in the table below. The length of the screw must be the thickness of the fastening plus at least 23 mm.
Unit Guide
D Diameter
D1 Outer diameter
G Thread length
H Head diameter
L Length
M Thickness
MB Mother box
Drill cap. mm Drill capacity mm
Max comp. thick. app. mm Max component thickness application mm
Min. drill depth mm Minimum drill depth mm
Screw dim. mm Screw dimension mm
Surface treat. Surface treatment
D L Screw dim. mm Quantity Pack. MB
14 33 4,0-5,0 SB331423 5 Pack 10
NOTE: Packs are only sold in multiples of ten.
