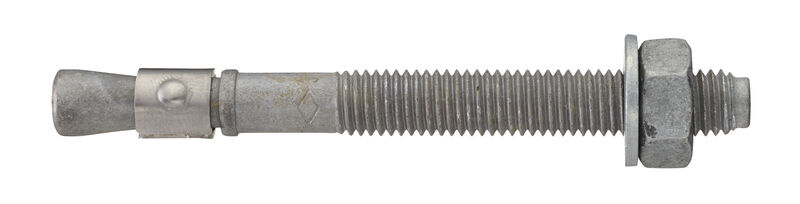

Wedge anchor (external)

Function: European technically approved wedge anchor (ETA-01/0013) for installing in concrete. Approval is valid for indoor installation.
Material: Steel.
Coating: Hot-dip galvanised, for outdoor use.
Installation instructions: Drill a hole adapted to suit the size of the wedge anchor as shown in the table below. Now knock the wedge anchor into the hole with a hammer. Tighten the nut according to the instructed tightening torque in the same table.

Unit Guide

D	Diameter
D1	Outer diameter
G	Thread length
H	Head diameter
L	Length
M	Thickness
MB	Mother box
Drill cap. mm	Drill capacity mm
Max comp. thick. app. mm	Max component thickness application mm
Min. drill depth mm	Minimum drill depth mm
Screw dim. mm	Screw dimension mm
Surface treat.	Surface treatment

	D	L	Min. drill depth mm	Max comp. thick. app. mm	Drill mm	Art.no	E-number	Quantity	Pack.	MB
*	6	40			6	84501	1509701	200	Packaging	8
*	6	40			6	SB83501		8	Pack	10
*	6	67	55	10	6	84502	1509704	150	Packaging	8
*	6	67	55	10	6	SB83502		7	Pack	10
*	6	97	55	40	6	84503	1509707	100	Packaging	8
*	6	97	55	40	6	SB83503		5	Pack	10
*	8	50			8	84504	1509721	100	Packaging	8
*	8	50			8	SB83504		6	Pack	10
	8	75	65	10	8	84505	1509724	50	Packaging	8
	8	75	65	10	8	SB83505		5	Pack	10
	8	95	65	30	8	84506	1509727	50	Packaging	8
	8	95	65	30	8	SB83506		5	Pack	10
	8	120	65	55	8	84507	1509730	50	Packaging	8
	8	120	65	55	8	SB83507		4	Pack	10
*	10	60			10	84508	1509741	50	Packaging	8
*	10	60			10	SB83508		4	Pack	10
	10	85	70	10	10	84509	1509744	50	Packaging	6
	10	85	70	10	10	SB83509		4	Pack	10
	10	105	70	30	10	84510	1509747	25	Packaging	8
	10	105	70	30	10	SB83510		3	Pack	10
	10	125	70	50	10	84511	1509750	25	Packaging	8
	10	125	70	50	10	SB83511		3	Pack	10
	10	145	70	70	10	84512	1509753	25	Packaging	6
	10	145	70	70	10	SB83512		2	Pack	10
	10	175	70	100	10	84513	1509756	25	Packaging	6
*	12	75			12	84514	1509761	25	Packaging	8
*	12	75			12	SB83513		3	Pack	10
	12	95			12	84515	1509764	25	Packaging	8
	12	95			12	SB83514		2	Pack	10
	12	125	90	30	12	84516	1509767	25	Packaging	6
	12	125	90	30	12	SB83525		2	Pack	10
	12	145	90	50	12	84517	1509770	25	Packaging	6
	12	145	90	50	12	SB83515		1	Pack	10
	12	180	90	85	12	84518	1509773	20	Packaging	6
	12	180	90	85	12	SB83516		1	Pack	10
	12	200	90	105	12	84519	1509776	20	Packaging	6
	16	115			16	84520	1509781	10	Packaging	8
	16	150	110	30	16	84521	1509784	10	Packaging	6
	20	180	130	35	20	84522	1509791	5	Packaging	6
	20	240	130	95	20	84523	1509795	5	Packaging	6

*Approval ETA-01/0013 does not apply to this dimension. NOTE: Packs are only sold in multiples of ten.
